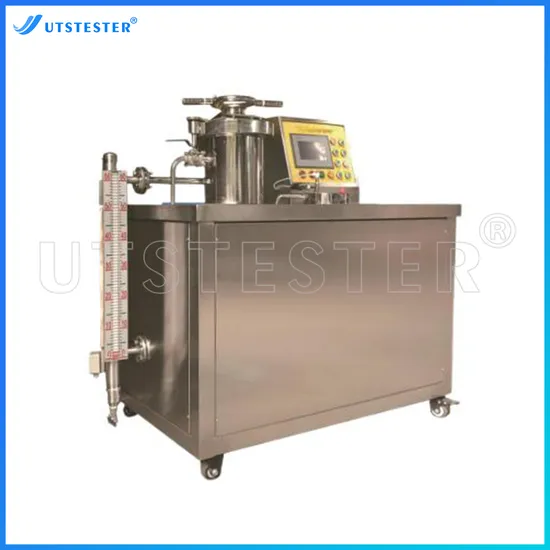

Textile Laboratory Testing Equipment Lab Bobbin Yarn Dyeing Machine

Product Description

Product Description
It is mainly used for dyeing, boiling, bleaching, washing and other processes of cotton, wool, chemical fiber and other bobbin yarn and loose yarn.
It can also be adapted to the dyeing of small batches of cloth.
The dye is placed in the dye tank, and the heated dye liquid is continuously replaced by the circulating pump and the reversing mechanism.
The circulation direction of the dye liquid can be changed to achieve the purpose of uniform dyeing under the given temperature and time of the process.
The body and all parts in contact with the dye solution are made of corrosion-resistant stainless steel.
Feature
1, the machine has compact structure, small bath ratio, PLC with touch screen control, the entire process automatic control, automatic High degree of transformation.
2, dyeing fluid circulation mode: by the corrosion resistant mixed flow pump with reversing device, according to the process needs to achieve positive and negative dyeing fluid Loop.
3, groove sealing form: silicone rubber O-type sealing ring.
4, equipped with pneumatic valve, master cylinder with flap type level controller, equipped with safety interlock mechanism, master cylinder with no Rust steel safety valve, manually open cover, and temperature control, can be set 85ºC safety protection.
5, dyeing liquid reversing control, computer automatic reversing control.
6, the main material: the selection of high-quality stainless steel plate production. Product Parameters

Model	D028
Minimum working capacity	1kg(barrel yarn), maximum working capacity: 3kg (barrel yarn)
Working pressure	0-0.40MPa
Maximum design pressure	0.50MPa
Operating temperature	room temperature -135ºC
Design maximum temperature	140ºC
Working medium	dye
Bath ratio range	1:6 ~ 1:15
Power supply	three-phase 380V, 50HZ
Main pump motor power	Main pump motor power: 2.2KW
Vertical cylinder	Cylinder body stainless steel 304, inner diameter 200mm, height 800mm
Core rod	Round mandrel 45×1.5 with pressure lock head, lower disc
Lid seal	Silicone rubber sealing belt, internal pressure self-sealing
Open cover system	Manual turn to open the cover
Safety device	Lock ring safety mechanism, master cylinder with safety valve, pressure gauge protection device
Heating method	Electric heating
Reversing device	There is a special reversing device, and the computer controls the automatic flow reversing
PLC control	Large screen touch screen PLC control, flexible and convenient operating system, digital setting of process parameters, high degree of automation, can be personalized programming according to customer needs.
Chemical feed system	The chemical barrel is equipped with the function of reflux circulation chemical material and automatic proportional feeding and timing feeding
Main pump	Centrifugal pump
Intake and drainage	Automatic water metering, single entry, single row, stainless steel pneumatic valve control
Valve door	Water inlet, sewage: DN20 pneumatic ball valve
Liquid level gauge	The master cylinder is equipped with a magnetic replica liquid level gauge, and the chemical barrel is equipped with a liquid level detection system
Host processing	The surface is sprayed with stainless steel high temperature metal paint, and the interior is acid-washed and passivated
Random gift	Mechanical seal static ring and pot seal each set

More Products
Company Profile
Our Exhibition
Our Customers
Our Advantages
FAQ
Q: How is your service?
- All of test devices will be calibrated and debugged before delivery to guaranty the quality.
- Our professional after-sale team will help you solving any problem within 24 hours* 7 days by emails or videos
- English operation manual and operation video will guide you how to use it.
- On-site machine training & installation can be provided with certain charges.
Q: What's your warranty period? A.12 months. In case of product problems, we provide needed spares parts for free during the warranty (exclude consumables and man-made damages)
Q: What's the payment term?
A: Usually TT, L/C are available. For others, please contact with us for negotiation.
Q: What's your lead time? A.We have professional production line and stuff whom can make a nice quality in a short time. Usually, within 5-25 days is ok, which is based on the stock status.
Q: Are you able to provide a ISO 17025 calibration certificate?
A: Yes, we generally provide two calibration certificates(optional).
• ISO 17025 certificate provided by a third party inspection company with charges.
• Calibration certificate provided by UTS without charges.
Q: Can you send report of fumigation report?
A: Our packing is composite board, not log, so it do not need fumigation treatment.
