Basic Info.
Model NO.
Fiberglass Yarn
Yarn Structure
Single Yarn
Surface Treatment
Starch Coated
Tensile Strength
≥0.4 N/Tex
Transport Package
Carton Box with Pallets
Specification
EC13-134Tex
Production Capacity
2000 Tons/Month
Product Description

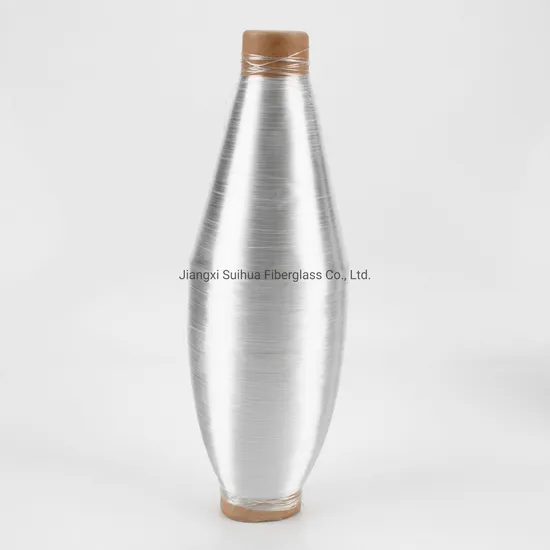

High Performance White Alkali-Free Glass Fiber Fiberglass YarnFiberglass yarn is made from 9-13um fiberglass filament which is then gathered and twisted into one finished yarn. In accordance with the production and processing methods, glass fiber yarn can be divided into the first twist glass fiber yarn and twist glass fiber yarn.According to sizing agent type, it can be divided into starch glass fiber yarn, silanes glass fiber yarn, and paraffin glass fiber yarn.According to application, it can be divided into electronic grade glass fiber yarn and industrial grade glass fiber yarn.It is suitable for electronic base cloth, curtain line, casing, fiberglass mesh, filter, and other products manufacturing.* Good usage performance, Hairiness less.* Easy to heat cleaning.* Resistant to chemical corrosion, strong acid, and alkali.* Good dimensional stability, high strength, and good mechanical properties.* Anti-bending fatigue, can be used for smaller wheel diameters.* High tensile strength.* Good air permeability, reduce heat consumption, improve drying efficiency.
Fiberglass Yarn |
Type | Glass Type | Alkali Content | Filament Diameter(um) | Linear Density (g/km) | Tensile Strength (N/tex) |
EC9-33 Tex | E | 6-12.4% | 9 | 33 | ≥0.4 |
EC11-50 Tex | E | 6-12.4% | 11 | 50 | ≥0.4 |
EC13-67 Tex | E | 6-12.4% | 13 | 67 | ≥0.4 |
EC13-100 Tex | E | 6-12.4% | 13 | 100 | ≥0.4 |
EC13-134 Tex | E | 6-12.4% | 13 | 134 | ≥0.4 |
Fiberglass Roving Yarn |
Product code
| Linear density tolerance
| Moisture content
| lol
| Tensile strength
| Filament of diameter
|
ECR13-300D
| ±7
| ≤0.10
| 0.40-0.70
| ≥0.40
| 13
|
ECR15-500D
| ±7
| ≤0.10
| 0.40-0.70
| ≥0.40
| 15
|
ECR17-650D
| ±7
| ≤0.10
| 0.40-0.70
| ≥0.40
| 17
|
ECR17-2400D
| ±7
| ≤0.10
| 0.40-0.70
| ≥0.40
| 17
|
|
>>
