300t High Cost Effectiveness Precision Horizontal Aluminum Die Casting Machine

Product Description

Product Description

GUANGDONG SHIMI INTELLIGENT EQUIPMENT CO.,LTD

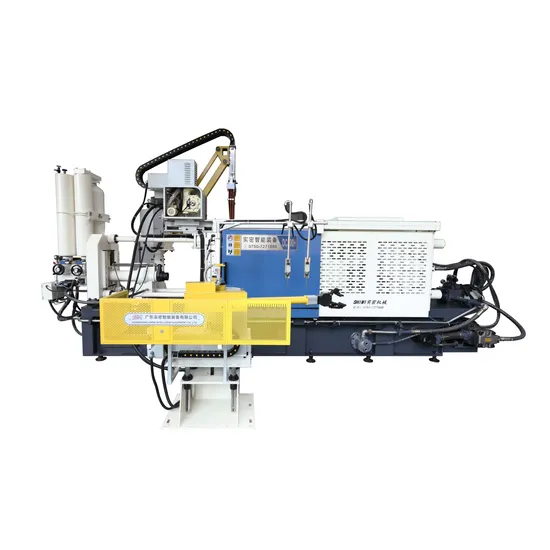

Aluminum Die Casting Machine DC300T High Pressure Cast Machine
SHIMI DC300T Cold Chamber Aluminum Die Casting Machine Features and Configuration

Reinforced Toggle Design
Mold clamping unit adopts Five-dot type toggle design, which optimized structure of connecting road and enhanced sports properties.
The steel bushing of hinge pin adopts alloy steel bushing (oil lubrication exist simultaneously),which reduce times of lubrication and prevent locking of toggle when no oil .

Die Platen and Tie Bar System
The optimization design of die platens have been carried out multiple times through analysis of element software, then strengthening design (increased thickness and support ribs of castings ), which both guarantee the service life of die platen and mold. The tie rods of each machine have passed the test by professional testing organization, to ensure the deflection of tie rod within reasonable scope during the operation of machine.


New Generation Stable and Reliable Injection System
Using 17.5Mpa system pressure, the maximum dry shot speed reaches to 8-9.5m/s, the injection force increases about 5-8%, it is more easier to molding to products with thin wall or high requirement on air tightness and surface finish, to reduce porosity of die castings effectively , especially suitable for automotive castings and stress castings.

Automatic centralized lubrication system
Central automatic lubrication system, timing lubrication toggle to improve mechanical life and reduce maintenance.

Product Parameters

ITEM	UNIT	DC300
Clamp Fore	KN	3000
Clamping stroke	MM	460
Ejecting Force	KN	220
Ejection Stroke	MM	105
Mold thickness	MM	250-700
Platen Size (w*h)	MM	900*900
Diameter of die bar	MM	110
Tie bar spacing(w*h)	MM	580*580
Force of shot	KN	370
Stroke of shot	MM	430
Plunger diameter	MM	50/60/70
Shot Weight/Al	KG	1.57/2.2/3.0
Shot Weight/Mg	KG	1.1/1.57/2.0
Casting Pressure (Intensify)	Mpa	162/113/83
Casting area	CM2	182/262/358
Max Casting area	CM2	780
Injection Position	MM	0 , -160
Launch distance of shot head	MM	150
Shot chamber flange diameter	MM	110
Shot flange protruding plate height	MM	10
Power of Motor	KW	22
System working pressure	MPa	14
Oil Tank Volume	L	800
Weight of Machine	KG	11500
Size of Machine	M	6.4*1.5*2.7

Products Application

Packaging & Shipping
Company Profile
Guangdong Shimi Intelligent Equipment Co., Ltd
is a professional manufacturing enterprise engaged in research and development, manufacturing, sales and export of cold chamber, hot chamber, and vertical die casting machines,Founded in 2009, the company has been relying on a professional R&D team. Combining advanced die-casting machine production and manufacturing processes at home and abroad.ShiMi has independently researched and developed hundreds of reliable products with high performance and high stability. ShiMi company has achieved rapid development, And it has invested a new production base in Jiangmen, Guangdong in 2022.Covering an area of 23000 square meters. ShiMi company has the capabilities of R&D and manufacturing heavy duty die-casting machines.
Our Advantages
High Performance Cold Chamber Die Casting Machine Series DC300T
+ Maximum idle shot speed > 9m/s
+ Pressure build up time ≤15ms
Low-speed stage: It can be accurately controlled to avoid the air involved in gas accumulation.
High speed stage: Can quickly reach high speed, effectively control the filing time and casting molding effect. Pressure-boosting stage : the pressurization speed, speed can be changed according to the process to strengthen the casting density without causing deformation.

---
