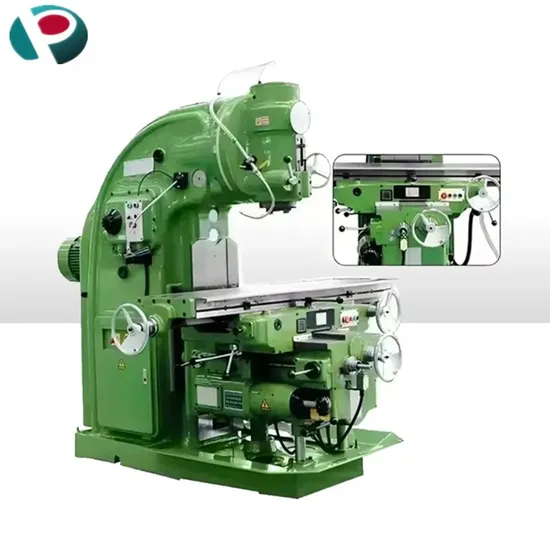

2024 Jepps High Quality Lathe Lathe Metal Lathe Vertical Milling Machine X5040

Product Description

Main structural features
1. The main components such as the base, machine body, worktable, middle slide, lifting slide, spindle box, etc. are all cast with high-strength materials and artificially aged to ensure the stability of the machine tool for long-term use.
2. The vertical milling head can be adjusted by ±45° in the vertical plane in both forward and reverse rotation to expand the processing range of the machine tool; the spindle bearing is a tapered roller bearing with strong load-bearing capacity, and the spindle adopts energy-consuming braking, with large braking torque, rapid and reliable stopping.
3. The worktable has three types of manual feeding, motorized feeding and motorized fast feeding in the X/Y/Z direction, and the feeding speed can meet different processing requirements; fast feeding can make the workpiece quickly reach the processing position, which is convenient and fast to process and shorten the non-processing time.
4. The guide rails in the three directions of X, Y and Z are subjected to ultrasonic quenching, precision grinding and scraping treatment, combined with forced lubrication to improve the accuracy and extend the service life of the machine tool.
5. The lubrication device can force lubricate the longitudinal, transverse and vertical screws and guide rails to reduce the wear of the machine tool and ensure the efficient operation of the machine tool; at the same time, the cooling system changes the flow of coolant by adjusting the nozzle to meet different processing requirements.
6. The machine tool design conforms to the principles of ergonomics and is easy to operate; the operation panel uses figurative symbols, which are simple and intuitive.

Main technical parameters of machine tools
Project		Unit	X5040	X5042
Spindle	Specifications of inner cone at the spindle end		7:24 50	7:24 50
	Spindle speed range	r/min	30~1500 rpm /18 levels	30~1500 rpm /18 levels
	Distance from spindle end to worktable	mm	30~415	40~510
	Spindle box rotation angle		±45°	±45°
	Spindle motor power	KW	11	11
Workbench	Workbench size	mm	1700x400	1800x420
	T-slot quantity, width and spacing	mm	3/18/70	3/18/90
	Maximum load	kg	800	800
Screw specifications	X axis	mm	6
	Y axis	mm	4
	Z axis	mm	2
Travel	X axis	mm	900/880	1200/1180
	Y axis	mm	315/300	360/350
	Z axis	mm	385/365	470/450
Maximum rapid traverse speed	X axis	mm/min	2300	2400
	Y axis	mm/min	2300	2400
	Z axis	mm/min	770	900
Feed speed	X/Y/Z	mm/min	23.5-1180/23.5-1180/8-394	22-1100/22-1100/8.3-410
Feed motor power		KW	2.2	3
Cooling pump power		W	125
Lubrication type			automatic	automatic
Power supply type	AC voltage	V	3~ 380±10%	3~ 380±10%
	frequency	Hz	50±10%	50±10%
Total power consumption		KVA	20
Total gas source pressure		MPa	0.5-0.7
Weight		kg	4250	4400
Dimensions (L×W×H)		mm	2556x2159x2298	2522x2265x2432

---
