1t Fast/Slow Building Anchor Marine Electric Winch Manufacturer Factory for Lifting and Pulling by Ce Approcal

Product Description

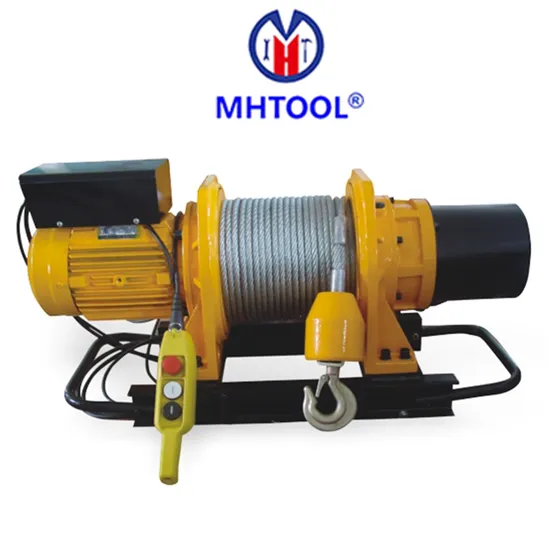

Electric Windlass for Pulling and Lifting Tools
Feature:
Drum transmission structure: It adopts 2-level gears decelerating transmission way. Coupling leads the drum tum directly. And it's very easy to replaced rejected wire rope or change the rotation direction of wire rope.
Wire rope fixing: Add one PT screw on the drum, it's more safer than normal wire rope fixing. It can ensure no escape of wire rope from the drum.
Brake mechanism: It adopts electromagnetism brake. Select wearable brake slice. It's very simple, no need to adjust the clearance. Brake will automatically apply in the event of power cut. It can control the drop distance of heavy load, safe and reliable.
Gear box: Made of ductile cast iron FCD-45# steel. Durable and nonbreakable.
Special motor: Insulated B, with the features of big start torque, small inertia, lower temperature rise, it can work frequently for a long time.
Driving gear: Made of high-quality steel. Pass heat treatment and high precision process. It has the features of wearable, low noise, high driving efficiency and good performance.
Machine fixture:Standard channel steel welded. It's convenient used for usded for building site, storage and port, etc.
Technique Parameter of Mini Electric Wire Rope Windlass:

Model	KDJ-500E1	KDJ-750E1	KDJ-1000E1
Rated Capacity(kg)	500	750	250
Rated Speed(m/min)	13		13.5
Lifting Height(m)	58
Cable Diameter(mm)	Φ9		Φ11
Wire Rope Capacity(m)	60
Motor(kw)	1.5	2.2	3
Pole	4
Voltage	Three Phase 230/380/415/440/480
Frequency(Hz)	50/60
N.W.(kg)	139	150	161

Factory Views:
Our After-sale Services-- within 24 Hours:
(1)....Before--Sale Service :
01..Quality Control: Strictly Production Request base on signed contract ;
02..Delivery Time: Guarantee within contracted delivery time ;
03..Photos: Send photos to our customer after finish production and packing ;
04..Packing Details:Give complete packing size table to our customer;
05..Brand: Respect our customers' advice to use our customers' own brand & logo ;
06..Documents:Provide high efficiency service to post you all required customs clearance documents by DHL or TNT .
(2)....After--Sale Service :
01..Reply : Fast reply all your questions on line or by email or by telephone ;
02..Quality Problems:Our factory is responsible for any problems if it is resulted by our reasons (Such as give you free new parts to repair it or give enough some compensation cost to you) ;
03..Safe Operating: Pls remind your customers to respect our Operating Manual to operate our machine rightly, to guarantee Safe when operate our machine.
