solar power panels roof top walkways floor stair Grille FRP square mesh decking

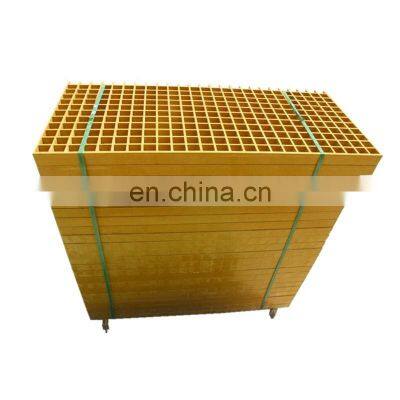

He Lanyu is a factory mainly manufacture frp grating, High quality drain platform walkway fiberglass reinforced plastic floor grating is manufactured by laying continuous glass fibres in the mould in the direction of vertical and horizontal, and thurougly wetted out with resin, layer by layer.
Properties of Powergrate FRP Molded Gratings:1. Corrosion and chemical resistanceCorrosion is a major problem for metal or wooden grating, stair treads and other products in many different industries such as chemical plants, food and beverage factories, water and wastewater facilities, power facilities. lanyu frp grating is particularly designed to provide safe, long-lasting, economical and worry-free solutions in environments where chemicals and other corrosive materials attack and destroy metal or wood. According to different environmental requirements, such resins as orthophthalic polyester, isophthalic polyester, vinyl ester or phenolic are chosen as matrix material.2. High strength-to-weight ratioLanyu manufactured as a composite of continuous fiberglass strands and high quality resin is integrally constructed for strength, but it is less than one-half the weight of steel grating allowing easy removal for access below floor level and installation with no heavy equipment and less manpower. Properly installed, lanyu gratings meet specified load requirements for steel and are more impact resistant than metal.3. Impact resistanceThe impact resistance of lanyu grating allows repeated deflection without permanent dmemory, so once the object is removed, the fiberglass grating will fully recover to its original position.4. Fire retardantFiberglass grating has flame spread rating of 25 or less depending on different resin systems as tested in term of ASTM E-84. Test Report can be offered upon request. Special fire retardant requirements can also be met by adding extra additives.
5. Slip-resistant
PowerGrate grating has a concave top surface for slip resistance after it is extracted from the mold. Should a grit surface be specified, the grit would be either bonded to the top of the completed grating as a secondary operation or embedded to the top of grating before heating, both providing superior slip resistance. Diamond cover top or gritted cover top are also available upon request.
6. Life span
More than 20 years of Life is guaranteed for PowerGrate gratings
Specification
No.
| Mesh/Thick
(mm)
| Thick
(mm)
| Open Area
(%)
| Weight
(KG/m2)
| Panel size
(mm)
| Usage
|
1
|
38mm x 38mm
| 25mm
| 68%
| 12.5kg
| Customzied
| Pedestrian walkway, trench cover plate, tree cover, breeding
|
2
|
| 30mm
| 68%
| 16kg
| Customized
| Machine Platform
|
3
|
| 38mm
| 65%
| 20kg
| Customized
| Car Wash Room
|
4
|
40mm x 40mm
| 25mm
| 67%
| 11.5kg
| Customized
| Pedestrian walkway, trench cover plate, tree cover, breeding
|
5
|
| 30mm
| 67%
| 14kg
| Customized
| Machine Platform
|
6
|
| 38mm
| 67%
| 18kg
| Customized
| Car Wash Room
|
Symbol
| Resin Basic
| Corrosion Resistance
| Applied Occasions
|
VE
| Vinyl ester
| Very good
| Severely corroded environment by acid and solvent
|
ISO
| ISO-phthalic
| Good
| Acid resistant very good,alkali resistant is general and solvent
|
Ortho
| Ortho-phthalic
| common
| General acid and alkali environment
|
