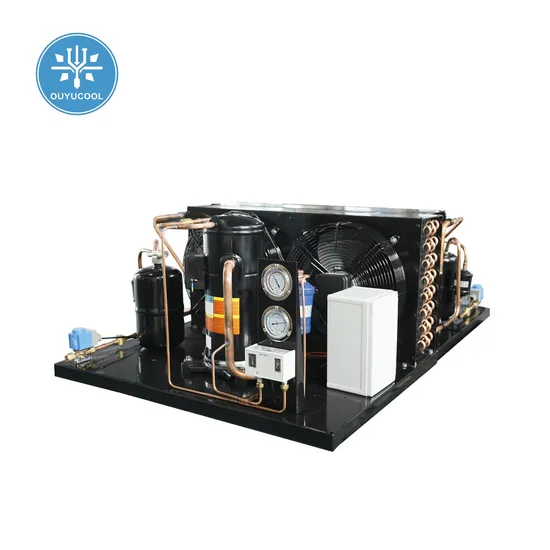

Ouyucool Cdi Series Open Pack Condensing Unit with Scroll Compressor for Cold Room

Product Description

Product Description
40HP Condensing Unit with Screw Compressor for Cold Room Ouyu series products are applicable to the large size +20ºC~-20ºC room temperature refrigeration system, as the large size low temperature cold rooms, ice making, and blast freezing etc., Features:
1.Reliable system: famous brand compressor, PLC controller, high efficient oil separating system
2.German bbitzer low temperature screw compressor with features of high efficiency, long service life, tiny vibration and low noise
3.Products have complete set of world famous components, protection devices for compressor WITH over heat, over load, over discharging temperature and low oil level, over high/low pressure of oil flow etc.

Air cooled Middle&Low temperature units
Model			CDI15	CDI22	CDI33	CDI43	CDI48	CDI55
Temperature(ºC)			-15ºC ~ +5 ºC
Refrigerant			R404A
Power supply			380V / 3P / 50Hz
Condenser	Fan Qty		1	1	2	2	2	2
	Voltage (V)		380	380	380	380	380	380
	Fan Dia. (mm)		1Xφ350	1Xφ400	2Xφ350	2Xφ400	2Xφ400	2Xφ400
Cooling Capacity & Input	Evap -5ºC	Cap (W)	3820	5740	7840	9720	11450	13270
		Input (KW)	1.76	2.5	3.32	4.2	4.79	5.24
	Evap -10ºC	Cap (W)	3070	4680	6370	7910	9310	11047
		Input (KW)	1.82	2.51	3.35	4.2	4.81	5.27
	Evap -15ºC	Cap (W)	2430	3780	5120	6380	7510	9114
		Input (KW)	1.88	2.52	3.37	4.2	4.82	5.28
Pipe	Suction Pipe(mm)		19	19	19	19	19	19
	Liquid Pipe(mm)		10	10	12	12	12	12
Overall Dimension		L (mm)	780	780	1010	1120	1380	1380
		W (mm)	700	730	780	780	830	830
		H (mm)	750	780	720	880	860	910

Air cooled Middle & Low temperature units
Model			CDI15	CDI22	CDI28	CDI36	CDI43	CDI55
Temperature(ºC)			-25ºC ~ -15 ºC
Refrigerant			R404A
Power supply			380V / 3P / 50Hz
Condenser	Fan Qty		1	1			2	2
	Voltage (V)		380	380	380	380	380	380
	Fan Dia. (mm)		1Xφ350	1Xφ400			2Xφ400	2Xφ400
Cooling Capacity & Input	Evap -20ºC	Cap (W)	2330	3240	4120	5930	7230	8060
		Input (KW)	1.79	2.25	2.63	3.59	4.44	4.9
	Evap -25ºC	Cap (W)	1880	2620	3340	4830	5910	6590
		Input (KW)	1.73	2.2	2.57	3.44	4.28	4.47
	Evap -30ºC	Cap (W)	1500	2070	2610	3790	4780	5350
		Input (KW)	1.66	2.12	2.44	3.3	4.17	4.95
Pipe	Suction Pipe(mm)		19	19	19	19	19	19
	Liquid Pipe(mm)		10	10	10	10	10	10
Overall Dimension		L (mm)	780	780	1010	1120	1120	1380
		W (mm)	700	730	780	780	780	830
		H (mm)	750	780	720	880	880	910
