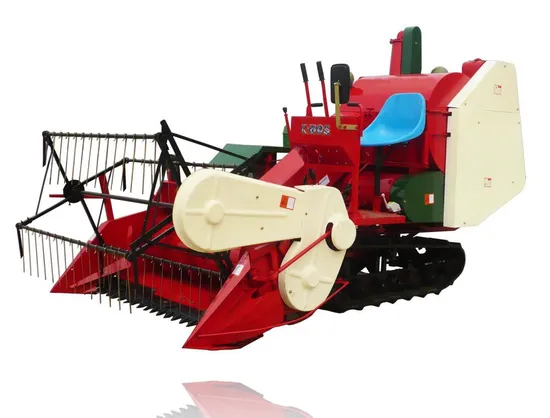

Hillside Island Combine Harvesting Machine Automated Grain Unloading Small Field Harvesting Machine

Product Description

Product Description
This Combine Harvester is a versatile and efficient machine designed specifically for hilly regions, making it ideal for use in hillside areas, islands, and small fields. With its multi-crop adaptability, it can effectively harvest a variety of crops, providing convenience and flexibility to farmers.
Equipped with a small-scale axial flow mechanism, this harvester ensures high efficiency and precision during the harvesting process. Its energy-saving and eco-friendly features make it an environmentally conscious choice for farmers.
The compact design of this hillside harvester allows it to navigate narrow and uneven terrains with ease, ensuring optimal performance even in challenging conditions. Additionally, its specialized features enable automatic grain unloading, saving time and effort for farmers.
Whether you have small fields in hilly areas or need to harvest crops in challenging terrains, this Combine Harvester is the expert solution you need. Its efficient performance, adaptability, and eco-friendly features make it the perfect choice for farmers in hilly regions.
This small model combine is specially for small-scale field in hilly and mountain area or island area;
It adopts the transversal axial flow threshing technology and threshing completely;
It has small body but with fully-funtioning, it can finish cutting, threshing, cleaning, grain storing and unloading works, etc.

Product Parameters

Specification:
Product Model			4LZ-1.6T Combine Harvester
Overall Dimension Length×Width×Heights ( mm ):			4000×2000×2200
Weight (kg)			1310
Productivity of Operating Hours(hm²/h):			0.15~0.28
Engine	Engine Model		CF36EM, CF1130
	Rated Power ( kw/hp )		26KW / 35.36HP, 21.88KW/30HP
	Engine Type		Water-Cooled, 1-Cylinder, 4-Stroke, DI-Injection,
	Rated Rotation Speed (r/min)		2200
Traveling System	Type of Gearbox:		Mechanical Stepped Transmission (3+1) x 2
	Rubber Track(mm):		320 x 90 x 40
	Gauge		850
	Minimum Ground Clearance (mm)		210
Cutting header	Height Adjustment		Hydraulic
	Cutting Width ( mm )		1450
	Header auger type		Telescopic Screw Conveying
	Pickup Reel		D840mm; Qty 4 Eccentric Tooth(off-centre)
Threshing System	Threshing System		Spiked Tooth Axial Flow
	Threshing Cylinder Quantity		1
	Cylinder Diameter×Length ( mm )		φ600 x 800
	Cleaning Mechanism Type		Air and Screen Cleaning , Vibrating Sieve.
Grain Storing	Automatic Unloading		500L 90° Big Grain Tank Capacity 500L with 90°Unloading Auger
	Manual Operation		Small Tank Capacity by Manpower

Our Advantages
We wre open to customize product and soulutions for your local field. Integrated after-sales management system. International mechanism of modern enterprise system. Over 70% sales is oversea market.
