4 Lines Drilling Machine for Woodworking Boring in Panel Cabinet

Product Description

Technical Paremeters

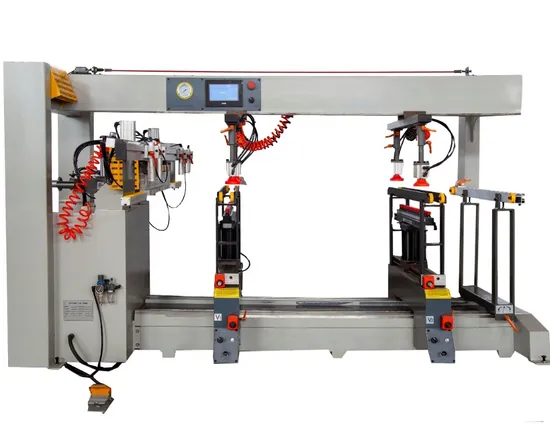

MZ73214 WOOD DRILLING MACHINE

Model	MZ73214
Overall dimensions	3500*2500*1500 mm
Number of spindle	21*4 lines
Spindle speed	2840 r/min
Install power	1.5kw *4
Air pressure	0.6-0.8Mpa
Vertical spindle heads	130-2500 mm
Max working depth	60 mm
Max drill diameter	35 mm

Product Details

Touch screen control panel
Adopt Taiwanese drilling row, stable power and long service life.
High speed boring tool can adjust the drilling rate for plates of different hardness and make the equipment run stably.
Adopt Taiwanese motor, stable power and long service life.
Imported cylinder:the air pressure adjustment button is upgraded to directly the air pressure and change the past air pressure adjustment.
Imported electrical components, the electrical box cable is neat, ensuring stable operation of the machine.
Application

Apply to processing all kinds of density boards,PVC board,artificial board,ABS board,PVC board,and others with wood structure and similar hardness.
Company Profile

Qingdao Zhongding Machinery Co., Ltd. is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.
We are committed to providing one-stop service for factory production. Replying on the favorable geographical advantages of Qingdao Industrial Park. We have formed a series of panel-type furniture equipment such as table saws, edge banding machines, and CNC routers, as well as solid wood woodworking machines such as: polishing machines, panel machine, press machine etc, which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East and so on. Bring our products and services for more than 66 countries people and customers.
About the payment,I should do the PI for you first,and it has the payment account number of our company, you need to pay a 30% deposit first,when we get the deposit,we will arrange the production of the machine,it takes 20 days. After the production is completed,I will send the pictures of the machine to you,next,you should pay the final payment,and we will arrange the delivery for you. Certifications
