5g Electronic Product Vertical Milling Machine CNC Machine Tool CNC Lathe

Product Description

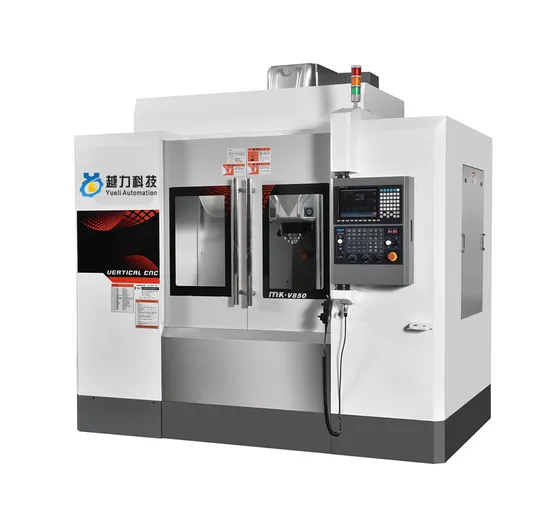

5G Terminal Machining Center
Functional Overview YueLi Tech vertical machining center series adopts a super-large base combined with a large-span herringbone column and a high-rigidity bed structure with a cross slide to ensure the shock-absorbing effect and precision maintenance of the machine. Large-diameter C3 grade with pre-drawn rod to eliminate part of the thermal extension; large line rail bearing, high rigidity, low friction, low noise BT40 direct-connected spindle, high speed, low vibration, high torque, front end labyrinth design, with air curtain protection function 24T disc frequency conversion servo tool magazine, high-speed tool change Suitable for high-end manufacturing industries such as 5G communication cavity processing, auto parts, mold manufacturing, and automated parts processing; Machine parameters

Mechanical parameters	Unit	V850	V1165	V1370	V1380
Three-axis travel	mm	800X500X530	1100x650x650	1300x700x700	1300x800×800
working desk size	mm	1000X500	1200x650	1400x700	1500x800
T-slot	mm	5-18X102	5-18x100	5-18x115	5-18x120
The maximum load capacity of the workbench	KG	800	1000	1200	1200
Distance from spindle end face to worktable surface	mm	90~640	100~750	150~850	125-925
Distance from spindle center to column guide rail	mm	560	680	730	835
X-axis rail specification	mm	35 rollers	45 rollers	45 rollers	45 rollers
Y-axis rail specification	mm	35 rollers	45 rollers	45 rollers	45 rollers (four rails)
Z axis rail specification	mm	35 rollers	45 rollers	45 rollers	45 rollers
X/Y/Z lead screw specifications	mm	36X16	40x12	40x10	50x10
Spindle specification		BT40/φ140	BT40/φ150	BT40/φ150	BT40/BT50/φ150
Spindle speed	rpm	12000	12000	12000	10000/12000
Spindle power	kw	16.5	16.5	16.5	18.5
X/Y/Z three-axis motor power	kw	3.9/3.9/5.9	5.9/5.9/5.9	5.9/5.9/5.9	5.9/5.9/5.9
X/Y/Z fast top speed	m/min	48	32	32	32
X/Y/Z cutting maximum speed	m/min	10000	10000	10000	10000
Three-axis positioning accuracy	mm	±0.003/300	±0.003/300	±0.003/300	±0.003/300
Three-axis repeat positioning accuracy	mm	±0.002/300	±0.002/300	±0.002/300	±0.002/300
Air pressure specification	kg/cm2	6-7	6-7	6-7	6-7
Machine size	mm	2500x2400x2400	3050x2700x2700	3450x2800x3100	3650x3000x3250
Overall weight (approximately)	kg	5000	6000	7000	8000

5G product display Craft production: Cast iron is reheated at high temperature and aged for more than six months Rigorous assembly process (rail assembly, lead screw assembly, bearing assembly, etc.) Superb scraping technology (motor seat scraping, spindle end face scraping, column mounting surface scraping) Scientific production, traceability of the whole process of the quality control system
Quality assurance When the pitch error is detected, the straightness of the linear guide in xx and yy directions can be detected at the same time to ensure the machining and assembly accuracy of the machine parts. The formal positioning accuracy and repeated positioning accuracy of the machine tool are measured The verticality of the main shaft and the working plane accuracy of the whole machine must be guaranteed within 0.01mm The verticality between Z-axis guide rail and working is required to be guaranteed within 0.01mm. The machine detects the verticality of xy axis guide rail, and the accuracy is required to be within 0.005mm.
Application field Suitable for small and medium-sized box class, plate class, plate class, valve class, shell class, mold and other complex parts of a variety of small and medium-sized batch processing, widely used in precision parts, precision mold, 5G products, hardware, auto parts, medical equipment industry. Yueli Technology is a technology enterprise integrating R&D, sales and production ,After years of hard work and development, the products include 5G terminal processing centers, drilling and tapping machines, five-head engraving and milling machines, five-linkage 3D profiling polishing machines, five-axis jewelry inlaid stone engraving and milling machines, peeling machines, gantry processing centers, high-speed Engraving and milling, forming machine, low-pressure casting machine, gravity die-casting machine, electric furnace, (automatic) core shooter, sand mixer, (CNC) drilling and tapping machine, machining center, engraving machine, automatic polishing machine, peeling machine, grinding machine, etc. series of products.

---
