Picosecond Laser Cutting Machine Tempered Glass Screen Cutting Machine

Product Description

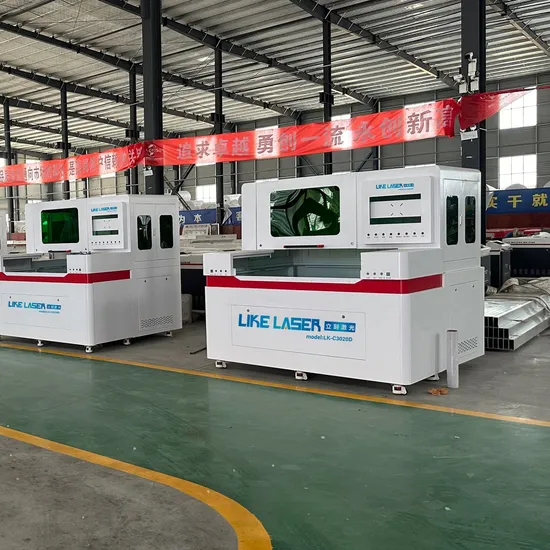

LK-C3020D Laser Glass Cutting Machine
Equipment name: Laser glass cutting machine ;
Contact person: Gavin

Product Description
Picosecond laser glass cutting machine is a high-efficiency, automatic glass cutting machine, using picosecond laser source and RF CO2 laser source to cooperate with glass cutting technology.The glass cutting industry is widely used, for example, glasses manufacturers, lens manufacturing, camera industry, optical lens production, medical industry, lens production in atomized,instruments, smart wearable watch industry, watch glass dial production, automotive industry, automotive rear view mirror glass cutting, cosmetic industry, cosmetic lens cutting.
Scope of application: 1,reinforced and non-reinforced glass cutting, such as: mobile phone glass cover plate, car glass cover plate, camera glass cover plate. 2,sapphire glass cutting, such as: mobile sapphire cover plate, camera sapphire glass cover plate, sapphire light strip (LED light strip).
3,LCD glass cutting, such as: shaped LCD screen inverted R/U/C Angle, LCD screen cutting.
4,other optical glass cutting, such as: filter cutting, mirror cutting.
5,ordinary glass cutting, such as high borosilicate, quartz glass, white glass, car mirrors, bathroom glass, etc.
6 ,cutting surface screen: single-sided curve (1200-2000), double-sided curve (400-2000) (optional).
The Biggest Feature
Advantages
LIKELASER ultra-fast glass laser cutting machine, using self-developed AI control system, high-endcustom picosecond light source, double drive linear motor, marble work surface, cutting oneprocessing, accuracy up to ± 2 microns. Compared with the traditional CNC/ water knifeprocessing has irreplaceable advantages, especially in the shape cutting, fine cutting,non-destructive cutting CNC, is completely incompetent, laser cutting is a non contact cutting, withsimple operation, automatic, no consumables, no pollution, no degree, no edge, low powerconsumption. High efficiency (cutting speed up to 15m/min), and the traditional CNC cutting thereare ring mirror pollution, bit loss, edge collapse, scrap rate is high, slow speed and other defects, and LIKELASER Jinway glass laser cutting machine to solve all the above problems at one time, greatly saving manufacturing costs for processing manufacturers, improve product profits.
Application
Product Parameters

Standard Size Laser Glass Cutting Machine
Model	LK-GC7060D	LK-GC8060D	LK-GC1380A
Size	700*600mm	800*600mm	1300*800mm
Workbench	2	2	1
Standard Size Laser Glass Cutting Machine
Model	LK-GC2010D	LK-GC2412D	LK-GC3020A
Size	2000*1000mm	2400*1200mm	3000*2000mm
Workbench	1	1	1

Cutting Light Source
1	Laser type	Picosecond pulse laser(the seed source uses the world's mainstream brands such as German Nlight)
2	Wave length	1064nm, beam quality: M2<1.3
3	Pulse length	<10PS; Pulse frequency:1Hz-1000kHz
4	Cooling mode	Cooling method: water cooling
Segmented light source
1	Laser type	CO2
2	Wave length	1064nm, beam quality: M2<1.3
3	Pulse length	<30PS; Pulse frequency: 1Hz-1000kHz
4	Cooling mode	Cooling method: water cooling
Cutting head
1	Focusing head	Bezier focus head
2	Number of cutting heads	Single head
3	Focusing spot	<2um
Visual counterpoint system
1	Camera	5 million CCD
2	illuminant	Ring-type light source with adjustable brightness

Packaging & Shipping
Companies and factories
HEBEI LIKE LASER EQUIPMENT CO.,LTD was established in July 2003 in shijiazhuang, the provincial capital of hebei Province in China. It is one of the biggest laser equipment manufacturers in Northern China. The main products of our company are fiber laser cutting machine, metal & nonmetal laser cutting machine, CO2 laser cutting machine, laser engraver machine,Glass Engraving Machine. Our machines can be used to cut or engrave all kinds of materials such as carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized sheet, wood, acrylic, bamboo, jade, crystal, plastic, cloth, paper, leather, rubber, ceramic, glass and other metal or nonmetal materials
After 17 years development, we have passed ISO90001 international quality system certification, European Union CE certification and American certification.
In the 1990s, Mr. ma returned from studying in England and set up our factory with his three students in Jinan, Shandong province, northern China. our early research direction was machine tools and automation. in the early 20th century, we began to focus on research and production of laser equipment. at the end of 2002, the factory moved to Shijiazhuang, capital of Hebei province, China, according to the requirements of investors.
Now the company owns about 50 employees, most of them having bachelor's degree to guarantee our high quality and professional service. Each year, we sell more than 1000 sets of machine to USA, Canada, Australia, Europe, Southeast Asia, Africa and other 90 countries and areas. We also supply OEM service for more than 10 foreign manufactures. CERTIFICATES

---
