Basic Info.
Product Type
Profile Extrusion Molding Machine
Assembly Structure
Integral Type Extruder
Engagement System
Non-Intermeshing
Screw Channel Structure
Deep Screw
Computerized
Computerized
Screw Material
High Quality Alloy Steel
Heating Element
Cast Aluminum Heater
Gear Case
Gear Box with Hard Tooth Face
Center Height
Customizable
Transport Package
Wood Bottom Case
Production Capacity
100sets/Months
Product Description
Yuyao Guotai rubber and plastic Machinery Co. LTD
Main products: plastic pipe extruder production line, plastic profile extrusion production line, wire/cable extrusion production line, plastic granulation unit and so on.
Support to map to sample custom mold
|
Product Description

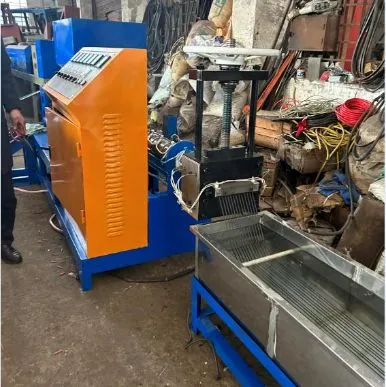

Detailed Photos
The following are the molds for various products
Packaging & Shipping
Plastic Extruder manufacturing plant
Application:
This kind of extruder has wide application. Adopt different screw structure types, installed with siutable die head and downstream equipments, can produce all kinds of polymer products, can produce from HDPE, PP, ABS, PVC, PET, PC, PS and other plastics material to pipes, profiles, sheets and granules
Specifications
Plastic extruding machine
1. High capacity
2. Long life
3. High speed extrusion
4. Low energy consumption
The characteristics:
1) Installed with imported termo controllers, imported inverters or converters.
2) Hardened gear reducer box, carburized and grinded teeth, installed with forced cooling system to ensure high-performance, low noise and long service life
3) For the material feeding section of barrel there're slotted bushing and smooth grooves, two designs to meet the needs of different raw materials.
4) Screw and barrel made of nitrided 38CrMoALA wear resistant, corrosion resistant, high strength.
5) We also can provide a variety of exhaust-type extruder
Customer choice:
Mode |
Screw Dia. |
Length to
diameter |
Rotational
Speed of screw |
Height of center point |
Capacity |
Power
Drive motor |
SJ-3-/25CY |
30mm |
25: 1 |
10-160r/min |
1000mm |
19.5kg/h |
2.2kw, 3kw |
SJ-45D |
45mm |
20: 1 |
10-90r/min |
1000mm |
22.5kg/h |
5.5kw |
SJ-45/25CY |
45mm |
25: 1 |
16-160r/min |
1000mm |
35kg/h |
7.5kw, 11kw |
SJ-45/28CY |
45mm |
28: 1 |
16-160r/min |
1000mm |
40kg/h |
7.5kw, 11kw |
SJ-45/25HY |
45mm |
25: 1 |
16-160r/min |
1000mm |
35kg/h |
11kw |
SJ-50/25HY |
50mm |
25: 1 |
16-160r/min |
1000mm |
40kg/h |
11kw, 15kw |
SJ-65/25HY |
65mm |
25: 1 |
8-80r/min |
1000mm |
100kg/h |
18.5kw |
SJ-65/28CY |
65mm |
25: 1 |
15-120r/min |
1000mm |
100kg/h |
18.5kw, 22kw |
SJ-65/28HY |
65mm |
28: 1 |
16-160r/min |
1000mm |
120kg/h |
22kw, 30kw |
SJ-65/30CY |
65mm |
30: 1 |
15-120r/min |
1000mm |
120kg/h |
22kw, 30kw, 37kw |
SJ-65/34CY |
65mm |
34: 1 |
15-120r/min |
1000mm |
120kg/h |
22kw, 30kw, 37kw |
SJ-70/25HY |
70mm |
25: 1 |
8-80r/min |
1000mm |
120kg/h |
22kw |
SJ-90/25HY |
90mm |
25: 1 |
10-100r/min |
1000mm |
155kg/h |
30kw, 45kw, 55kw |
SJ-120HY |
120mm |
25: 1 |
30-90r/min |
1000mm |
250kg/h |
75kw |
>>
