Safe and Reliable Operation RO Reverse Osmosis Water Treatment Machine Equipment System Plant

Product Description

Feature
High degree of operation automation, the imported parts rate is over 80%;Low pressure full water automatic shutdown, high pressure full water automatic shutdown;Water pressure fluctuation protection, automatic controller regularly flushes pre-filter material;IC microcomputer controller automatically rinses the reverse osmosis membrane, and automatically monitors water quality;Small footprint, low energy consumption, no pollution; simple process, high water quality, easy operation and maintenance;
Application scope: A.electronic industry water: integrated circuit, silicon wafer, display tube, electrode foil and other electronic components flushing water. B. chemical industry water: chemical recycling, chemical products manufacturing, fertilizer production, etc. C. power industry boiler feed water: power plant boiler, medium and low pressure boiler power system. D. food industry water: beverages, beer, liquor, health products, etc. E. drinking pure water: real estate, community, enterprises, etc. F. seawater, brackish water desalination, islands, ships, offshore drilling platforms, brackish water areas. G. other water: automotive, household appliances, coating, coated glass, cosmetics, fine processing products, printing and dyeing, etc.
Specification

Model	Flow rate (L/h)	Power(KW)	Water use efficiency	RO membrane	Dimension
					L X W X H(mm)
RO-500L	500	1.5	≥ 50%	4040	1650X630X1800
RO-750L	750	2.5	≥ 50%	4040	1870X630X1850
RO-1000L	1000	2.5	≥ 50%	4040	1870X650X1850
RO-2000L	2000	3.5	≥ 50%	4040	2440X650X1750
RO-3000L	3000	4	≥ 50%	4040	2440X620X1850
RO-5000L	5000	7.5	≥ 50%	8040	2000X900X1800
RO-6000L	6000	9.5	≥ 60%	8040	3000X900X1800
RO-8000L	8000	13.5	≥ 60%	8040	3000×900×1800
RO-9000L	9000	14	≥ 60%	8040	4000X900X1800
RO-10T	10T/H	19	≥ 60%	8040	3000X900X1800
RO-12T	12T/H	19.5	≥ 60%	8040	4000X900X1800
RO-15T	15T/H	23	≥ 60%	8040	4000X900X1950
RO-20T	20T/H	28	≥ 60%	8040	5000X900X1950
RO-30T	30T/H	55	≥ 60%	8040	7000X900X1950

Ultrafiltration film technology introduction Ultrafiltration film is a film filtering between micro-filtering and nanometer-filtering, which is applied to separation,concentration and purfication of substance. It is generally characterized by the retention component in practical applications, and is mainly used to separate macromolecules, colloids and particles in solution from small molecular substances such as solvents. Macromolecules, colloids and particles are trapped on the surface of the membrane, and are taken away by the circulation of the substance to form a concentrated solution, which achieves the purpose of substance separation, concentration and purification. System process flow diagram Raw water → pre-treatment → fine treatment (UF and RO system)→ post treatment (UV or ozone sterilizer)→ Use

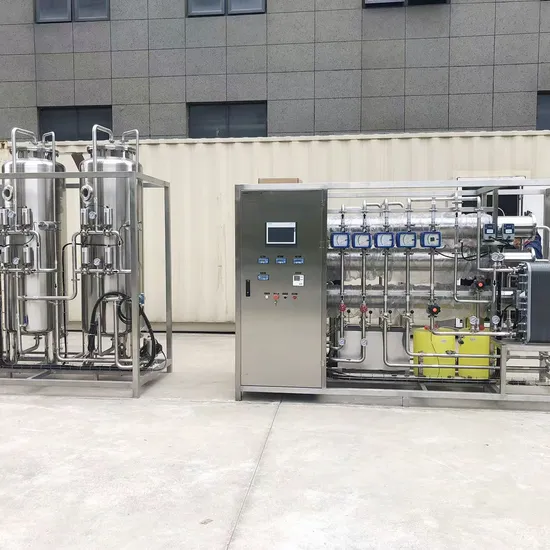

Water treatment equipment show
FAQ 1. Q: What products you provide?
A: We are specialized in RO system, EDI system, UF system,Water softener, Sewage water treatment equipment, etc.
2. Q: What's the information you need before order?
A1: what's your raw water ?
A2: what's the capacity per hour of the equipment ?
A3: What's the application of purifier water ?
3. Q: How long is your delivery time?
A: Generally it is 30 days, Depends on your project.
For more information Wenzhou HengTong Water Treatment CO.,LTD. ADD:No.922,Jinhai 2nd Avenue,Airport New District,Wenzhou, Zhejiang

---
