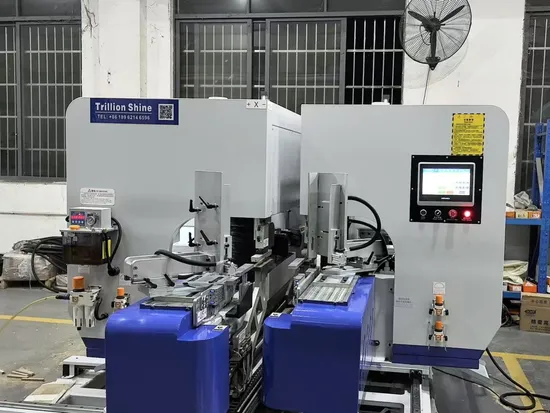

Double-Sided Tongue and Groove Machine for Parquet Flooring

Product Description

Application
Designed for transverse double-sided milling of engineering and solid chevron parquet in one pass.
Advantages Simultaneous angular cutting and grooving on two sides from one base, high accuracy and productivity Main and trimming saws, to prevent chipping 4 milling units(forward and reverse rotation), to prevent chipping on corners and edges PLC display, for convenient electronic setting of milling length and angle Automatic loading of raw planks and automatic return of finished flooring, to save labour Equipped with Taiwan linear guides with chip protection and automatic lubrication oil supply. The steel bed is manufactured on a 5-axis CNC machining centre and has been heat-treated to relieve internal stresses through hardening and vibration aging, ensuring the strength of the steel bed and accuracy when machining of wooden workpieces
Technical Parameter

Length of finished product	320-960 mm ( machinning 90 °) 450-1000 mm (machinning 45 °)
Processing width	70-150 mm
Processing thickness	10-30 mm
Machine capacity	10 pcs./min
Control system	Inovance PLC bus + touch screen
Saw motor power	4 pcs x 3.7 Kw
Saw rotational speed	12000 r/min
Diameter of saw blade, mm	2 pcs x D150 x d35 mm 3 pcs x D125 x d35 mm
Milling cutter motor power	4 pcs x 4.5 Kw
Cutters rotational speed	9000r/min;
Diameter of milling cutters (not included in the machine)	2 sets x D150 x d40 mm one set is jumpping cutter
Main processing angles (Machine angles can be adjusted)	-45°/-60°/-51.4°/-90° & 45°/60°/51.4°/90°
Feeding servo motor power	4 pcs x 0.75 Kw
Pre-feeding servo motor power	2 pcs x 0.4 Kw
Angle adjustment servo motor power (servo)	2 pcs x 0.85 Kw
Width adjustment servo motor power	1 x 0.85 Kw
Machine dimension	2900 x 2200 x 2100 mm
Machine weight	3900 kg.

Product Show

---
