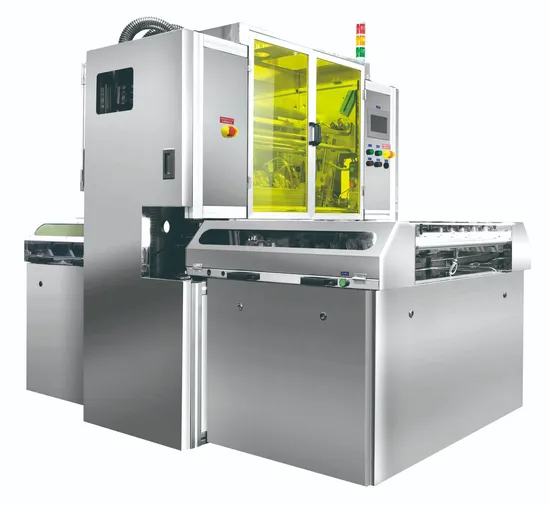

Product Description GH-A640 Dry Film Auto Cutting Laminator
| Model number | GH-A640 |
| Current source | AC380V 3 Phase 15KW 50HZ |
| Pressure | 5-8kgw/cm2 |
| Outline dimension | L2200*W1540*H1910mm |
| The effective width of the film pressure | 650MM |
| Baseline length | 250~660mm |
| Baseline width | 250~660mm |
| Baseline thickness | 0.1~3.3mm |
| Dry film size | |
| Membrane width | 250~650mm |
| Film thickness | 15~76μm |
| Membrane diameter | external diameter 200mm |
| Control method | PLC+human-computer interface |
| Hot pressure | Ø 78mm*760mm |
| Heating method | Inductive heater |
| Number of hot pressing rollers | 4 |
| Pressure membrane speed | velocity range 0~5.5m/minMan-machine interface is set arbitrarily. |
| Film pressure temperature | SSR+PLC temperature control room temperature ~130ºC |
| Main material | SUS304Mirror stainless steel. |
| Pressure membrane pressure | 2-6kg/cm2(adjustable) |
| Vacuum grip device | Five-section operation width setting |
| Vacuum pump | 2.2KW(3HP) |
| Vacuum suction disc range | 9 "~13 ",14 "~17",18"~21",22 "~25 "
Silicone wheel Ø 40m/m,Stainless steel roller Ø 31.5mm P=74mm |
| Structure | Host body mobile type, convenient for dry film replacement |
| Before dew copper | 0.0~49.9mm |
| After dew copper | 0.0~12.9mm |
| Brass error | ±1.0mm |
| Board edge error | ±1.0mm |
| Exhaust | 40CM(caliber Ø 4") |
| Weight of equipment | About 1,360 kg |
