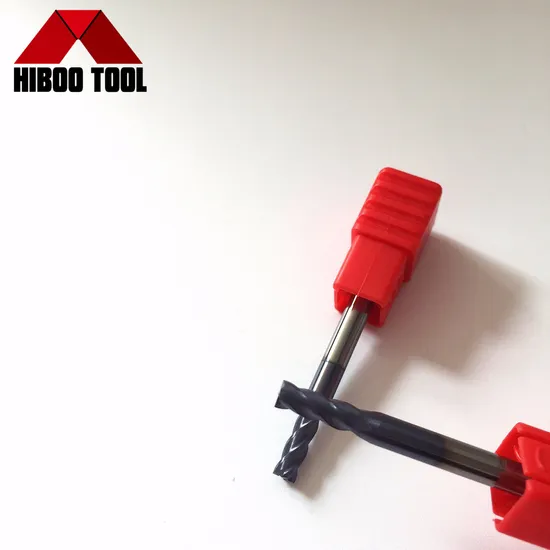

High Quality Tungsten Carbide Long Flat End Milling Cutters

Product Description

HRC60 4 Flutes carbide square long flute end mills
1. HRC60 Micro grain carbide rod:
WC=88%, Co=12%, TRS>4200N/mm2; Hardness>92HRA, Grain size: 0.4um; High qulaity of wearability and impact
2. Made by world latest 5-AXIS tools grinding machine, promise the quality and precision of cutter.
3. Super TiAlN, reduce the coeffiction of friction, and improve the tools life much.

	AlTiN	TiAIN	TiSiN	Nano
Hardness(HV)	3200	2800	3600	42(GPA)
Thickness(UM)	2.5-3	2.5-3	3	3
Oxidation Temp(°)	900	800	1000	1200
Friction Coeffient	0.3	0.3	0.45	0.4
Color	Black	Violet	Copper	Blue

4. Each end mill is inspected by Zoller measuring and inspected machine.
5. The following Specification for your refer, We also provide the OEM or ODM service

(Order No)	Cutting	Shank	Flute	A.0.L
	d	D	l	L
1.0×7×4D×50L×4F	1	4	7	50
1.5×9×4D×50L×4F	1.5	4	9	50
2.0×12×4D×50L×4F	2	4	12	50
2.5×12×4D×50L×4F	2.5	4	12	50
3.0×15×6D×60L×4F	3	6	15	60
3.5×15×6D×60L×4F	3.5	6	15	60
4.0×20×6D×75L×4F	4	6	20	75
4.5×20×6D×75L×4F	4.5	6	20	75
5.0×25×6D×75L×4F	5	6	25	75
5.5×25×6D×75L×4F	5.5	6	25	75
6.0×30×6D×75L×4F	6	6	30	75
7.0×30×8D×100L×4F	7	8	30	100
8.0×35×8D×100L×4F	8	8	40	100
9.0×40×10D×100L×4F	9	10	40	100
10×40×10D×100L×4F	10	10	40	100
11×40×12D×100L×4F	11	12	40	100
12×45×12D×100L×4F	12	12	50	100
14×50×14D×150L×4F	14	14	50	150
16×60×16D×150L×4F	16	16	60	150
18×70×18D×150L×4F	18	18	70	150
20×70×20D×160L×4F	20	20	70	160

6. Package and shipping details
Laser brand on the cutter's shank , 1 pc in a plastic tube , 10pcs a group
7.Delivery Time
For samples , we dispatch your tools in 2-7 workdays .
For formal orders,We delivery tools to you in 7-30 workdays , it will depond on your order quantity .
8. Payment Term
T/T ,Western Union , MoneyGram,L/C
9.Why Choose Hiboo Tools
Several years' professional producting and exporting experience
Advanced RD department meet your special demands
High precision CNC machines,high standard and strict inspection
Custom demand are welcomed ,OEM and ODM Service
All payment terms supported
Fast delivery time and Convenient Transportations
More than 2000 products are available
For your suggestions or complaints,We will handle them Soonest

---
