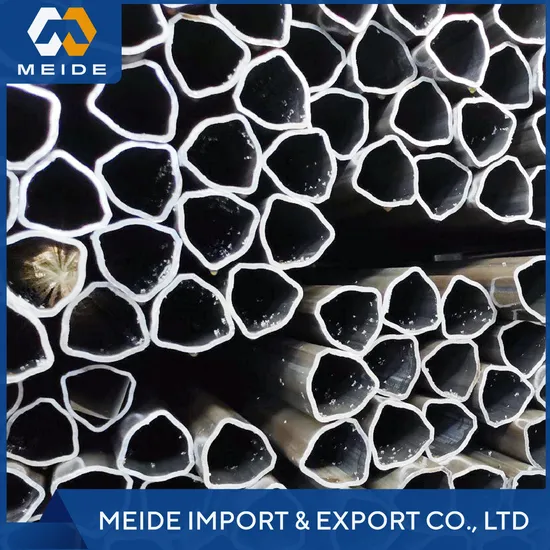

Pto Lemon Tube St52 for Agricultural Transmission Shaft Connecting Rod for L1 L2 L3 L4 L5 L6 L32 Triangular Tube Hexagonal Steel Tube Seamless Shaped Steel Pip

Product Description

Introduce Product name: shape tube, shaped steel tube, shaped tube,cold drawn shaped tube,deformed steel tube agricultural tube
Material/Grade: ST52,E355,Q345B,4140,42CrMo4,CK45,A106,STKM13C, C20, 1020, 1026,10#, 20#, 35#, 45#
Size and tolerance: Depends on drawing
Production process: cold drawn
Application: for agriculture motor, agricultural machines, motorcycles, guns pipe, machine engineering
Product Description

Product details

Material: ST52,C20,SS400,ST37 ,SAE1020 ,16Mn,10#,45#, Q235,Q345,Q195,20#

Section Shape:triangular/hexagonal/triangular

Place of Origin:Liaocheng, Shandong province, China

Secondary Or Not:Non-secondary

Application: rotavator

Technique:Cold Drawn

Surface Treatment:none

Alloy Or Not:Non-alloy

Size: 53.6*3.8&44.6*5.5mm and 43.4*3.3/36.1*4.4mm etc

OD: 15-80mm,Thickness: 1 - 14 mm,Length:1-9m or cutting as you require

Tolerance: we can control it within OD/Thickness +/-0.1mm

Hardness: HB170-217.

Payment: 30% by T/T and the 70% balance should be paid against L/C, Western Union, Money Gram Etc.

OEM: Yes

Trade terms: EXW,FOB,CIF,CNF

Usage: these pipes are mainly used for agricultural machine PTO shaft.

Quality inspection

1.Heat pipes inspection:to measure the outer diameter and the tolerance of the pipe. 2.General inspection:to chcek the inner diameter and thesurface of the pipe. 3.Finished product inspection:we need test the pipeone by one through Eddy Current Test.

Packaging & Delivery

Packaging Details

Inner packing: Plastic Bags, White or Color Individal Boxes. Outer Packing: Wooden Boxes or Carton Boxes. standard export bundle wrapped with strong steel strip,as per customer's requirements.

Delivery Time:30 days after the order

Minimum Order Quantity: 200pcs

Product Parameters

Rotary tiller model	1GKN-140	1GKN-160	1GKN-180	1GKN-200H	1GKN-230H	1GKN-250H	1GKN-280
Auxiliary power (kW)	≥29.4	≥29.4	≥40.5	≥40.5	≥48	≥55	≥58.5
Tillage range (cm)	140	160	180	200	230	250	280
Depth of tillage(cm)	10-14		Dry farming10-16 Hydroponics14-18
Number of blades(piece)	34	38	50	58	62	66	70
Model of rotary blade	IT450
Design rotation speed of cutter roller(r/min)	200~235
Structure type	Frame type
Form of connection with a tractor	Three-point suspension
Transmission mode	Middle Gear Drive
Rotational speed of tractor power output shaft	540	540/760
Forward speed(km/h)	Second gear		Second gear\Third Gear
	2.5~6.5
Productivity(hm²/h)	≥0.20	≥0.20	≥0.20	≥0.20	≥0.20	≥0.20	≥0.20
Fuel consumption(kg/hm²)	Arable land:15-18 Raking ground:12-15
Overall dimension (cm) (length * width * height)	102*164*110	102*184*112	110*208*110	117*232*115	115*256*115	122*274*118	102*312*116
Filling amount of gear oil(kg)	6

Features and applications Characteristics and application: This steel series is imported from American AISI/SAE standard steel grade 8720. Its hardenability is similar to that of 20CrNi steel, and its strength is higher than that of 20CrNi steel. Used to manufacture gears for engines and transmission systems of small and medium-sized cars and tractors; It can also replace 12CrNi3 to manufacture carburized steel and carbonitriding parts with higher requirements for central performance, such as the jaw and cone body of cone bits for oil drilling and metallurgical mining.

More pictures

FAQ 1. Who are we?
Our headquarter is located in Shandong, China. Since 2022, we have sold to North America (60.00%), Western Europe (14.00%) and South America (6.00%). There are about 11-50 people in our office.
2. How do we guarantee quality?
Always provide pre-production samples before mass production;
Always carry out final inspection before shipment;
3. What can you buy from us?
Copper, aluminum, die steel, titanium, customized machine parts
4. Why should you buy from us instead of other suppliers?
The company has 25 years of production experience. It has advanced precision production equipment, modern large warehouse, 200000 tons of inventory goods and a number of long-term stable cooperative customers.
5. What services can we provide?
Accepted delivery conditions: FOB, CFR, CIF, EXW
Accepted payment currency: US dollar, Euro, Japanese yen, Canadian dollar, Australian dollar, Hong Kong dollar, British pound, RMB, Swiss franc;
Accepted payment type: T/T, L/C, D/P D/A, PayPal;
Optional ports: Tianjin, Shanghai, Guangzhou;
Spoken: English, Chinese
6. How can we get your price?
A. We need the following information to quote for you:
1). Product Name
2). standard
3). Material grade (chemical composition)
4). dimension
5). amount
6). Special part drawin

---
