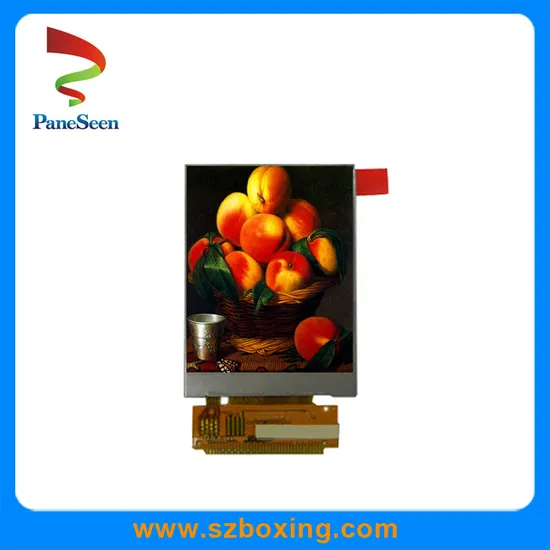

2.0" TFT LCD Display with 176*220 Resolution, 6 O′clock View Direction

Product Description

2.0" TFT LCD Display with 176*220 Resolution, 6 O'Clock view direction
1. General Specification
PS020SFI05 is a TFT-LCD module. It is composed of a TFT-LCD panel,driver IC, FPC, a back light unit. The2.0 inch display area contains 176 x 220 pixels and can display up to 262K colors. This product accords with RoHS environmental criterion.

Item	Contents	Unit
LCD Type	TFT	-
Display color	65K/262K	-
Viewing Direction	6	O'Clock
Gray scale inversion direction	12	O'Clock
Operating temperature	-20~+70	ºC
Storage temperature	-30~+80	ºC
Module size	Refer to outline drawing	mm
Active Area(W×H)	31.68X39.60	mm
Number of Dots	176×220	dots
Controller	ILI9225G	-
Power Supply Voltage	2.8	V
Outline Dimensions	Refer to outline drawing	-
Backlight	1X3-LEDs (white)	pcs
Weight	-	g
Interface	MCU--8bit/16bit	-

2. Optical Specification
3.Product Drawing
4. Application
Handheld Devices, finger sphygmomanometer, beauty apparatus, Printer
5. Company Advantage
Small MOQ accepted
Competitive price and short lead-time.
ISO9001 and ROSH certificated factory-supplied.
TFT LCD module, touch panel, PCB with SMT/COB solutions
6. Quality Control
Our technicians and QC team test the original products one by one to ensure every product is perfect before package and shipment!
We will test goods strictly according to our standard inspection before shipment.
If exceed this standard, clients can ask for returning and get new.
7. After-sale service
One-year warranty.
Issues about Refunding Sample cost.
If Clients ask for refunding sample, the freight should be paid by them. After we receiving the sample, we will test it again.
If it's our problem, we will replace a new one and in charge of all the sending out costs.
If the sample's quality is caused by customer improper operation or other man-made damage, we will charge reasonable maintenance based on the specific situation. And the sending out cost will be charged by the customer.
8. Packaging and Delivery:
1). Payment Terms: T/T, Paypal
2). Shipping: Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.
3). Delivery time: 7-10 days for sample, 3-4 weeks for mass production goods.
4). Packaging Details: Packed in anti-static bags with foam box to ensure safety in transportation
5). Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.
6). Samples: Our company offers samples for quality tests or other business purposes, but we kindly ask you to pay for samples and the freight.

---
