Product Details
Product Description
Product Description
Description

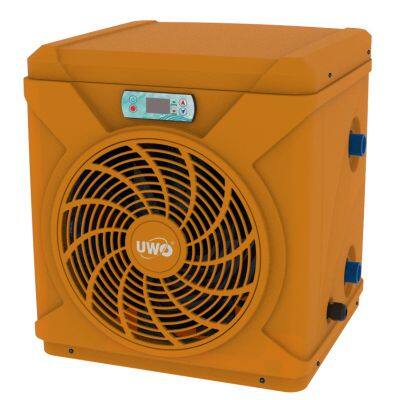

Swimming pool mini heat pump, heating only, side discharge. Injection molded plastic cabinet. Single ordinary body color(Grey/Black).
1. Injection molded anti-fire ABS plastic casing: Innovated, unique and graceful design, provides a more personzlied and fashionable solution for above ground pools, jacuzzis or spas.
2. Renewed internal strucure design: Vertical water inlet/outlet, added compressor discharge temp.sensor and protection, L-shaped evaporator ect., ensure much higher energy efficiency.
3. With WiFi control.
Specification
| Model No. | USP | 30R3-CP | 40R3-CP | 50R3-CP
|
|
| Performance condition: Air temperature : 27°C, Inlet / Outlet water temerature: 26°C / 28°C, Humidity 80%. |
| Heating capacity | kW | 3.2 | 4.14 | 5.23 |
|
| Power consumption | kW | 0.56 | 0.73 | 0.83 |
|
| C.O.P | W/W | 5.71 | 5.67 | 6.30 |
|
| Performance condition: Air temperature : 15°C, Inlet / Outlet water temerature: 26°C / 28°C, Humidity 70%. |
| Heating capacity | kW | 2.32 | 2.82 | 3.72 |
|
| Power consumption | kW | 0.53 | 0.65 | 0.87 |
|
| C.O.P | W/W | 4.37 | 4.34 | 4.27 |
|
|
| Compressor |
| Rotary type with R32 refrigerant,GMCC or the similar brand. |
| Voltage |
| 220-240V/50Hz/1PH |
| Rated current | A | 3.1 | 3.2 | 5.1 |
|
| Advised pool volume(covered) | m³ | 5~15 | 8~18 | 10~22 |
|
| Water side heat exchanger |
| Spiral round titanium tube in PVC shell |
| Water connection | mm | 32 or 38 |
| Noise level(1m) | dB(A) | 46 | 47 | 48 |
|
| Net weight | kg | 20 | 21 | 24 |
|
| Gross weight | kg | 23 | 24 | 26 |
|
| Net Dimension(WxDxH) | mm | 416*387*433 |
| Packing Dimension(WxDxH) | mm | 480*420*480 |
>>
