Zmde High-Speed Automated Plate Drilling System for Beam Lines

Product Description

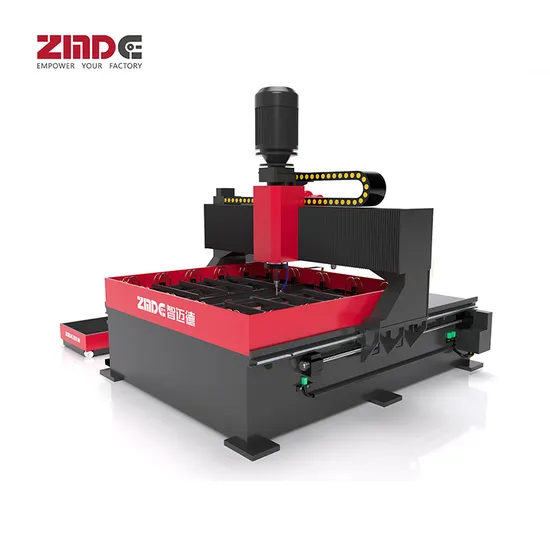

ZMDE Automated High Speed Plate Drilling System Beam Line Drilling Machine

>Unparalleled Cost-effective Equipment <
1. The equipment, constructed from robust materials, boasts a low failure rate, significantly reducing maintenance costs. Components such as ball screws, linear guides, hydraulic parts, electrical parts, servo motors, and frequency converters are sourced from industry-leading brands.
2. Enjoy automated chip removal with the CRT display, eliminating manual cleaning costs and saving valuable time.
3. Delivering high precision and a high qualification rate for workpieces, this system minimizes the cost of consumables.
>Effortless Operation, Maximized Productivity <
1. Featuring a user-friendly human-machine interface, it simplifies the generation of automatic machining programs.
2. Controlled by advanced CNC and PLC systems, it ensures accurate positioning for flawless results.
3. Hydraulic clamps secure workpieces, with foot-switch operation for convenience and labor-saving efficiency.
4. Equipped with 12 rapid-action hydraulic clamps distributed around the table, allowing simultaneous clamping of four workpiece groups.
5. The ability to clamp small workpieces at the table's corners significantly shortens the production preparation cycle, boosting efficiency.
6. Small corner clamping of workpieces enhances efficiency by shortening the preparation period and improving overall production.
> Unwavering Quality, Versatile Applications <
1. Key components like the gantry, column, and table are made from solid materials, with the main machine weighing up to 6300kg.
2. Serving a broad range of industries, this system is indispensable for plate processing connections.
3. Versatility in drilling, supporting diameters from 12mm to 50mm.
> Adaptable to Various Production Scenarios <
1. Ideal for continuous production of single flat type workpieces in multiple batches.
2. Perfect for small batch production of various workpiece types, handling different plate shapes like rectangular, round flange, and polygonal. It even processes two or four different specifications simultaneously.
3. Supports stacking production of multiple thin sheets, accommodating up to 100mm drilled holes.
4. Through advanced software, it automates the start and end points of processing, handling through holes, blind holes, step holes, and hole end chamfer with ease.
> Comprehensive Automation in Production Process <
1. Integrated line board with a high degree of automation, offering precise automatic positioning based on the drilling program.
2. Automatically adjusts optimal feed volume to match different hole diameters.
3. Capable of automatic, continuous processing of large-diameter holes with one-time processing and molding.
4. Features an efficient automatic chip removal function.
Technical Parameters

Model		ZMD-Z2016
Workpiece Size	Thickness of material stacking(mm)	100
	Length×Widthhhhh (mm)	2000×1600 One piece
		1600×1000 two pieces
		1000×800 Four pieces
Workpiece clamping	Number of clamping cylinders 12	Clamping force7.5Kn/1pc.
Vertical hydraulic type Drilling power head	Number of spindles	1piece
	Spindle taper hole	morse.taper 5#,4#
	Maximum drilling diameter	50mm
	Spindle speed (frequency conversion stepless)	100-560rpm
	Work feed speed	20-200mm/min(hydraulic speed regulation)
	Spindle feed stroke	190mm
	Spindle motor power	5.5KW
Gantry longitudinal movement (X-axis)	Maximum stroke	2000mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Power head lateral movement (Y-axis)	Maximum stroke	1600mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Hydraulic system	System pressure/flow	6MPa/30L/min
	Hydraulic pump motor power	2.2KW
	Oil tank capacity	100L
Chip removal and cooling	Form of chip conveyor	Chain plate type
	Number of chip conveyor	1
	Chip discharge speed	1m/min
	Power of chip removal motor	0.75KW
	Cooling pump motor power	0.75KW
	Liquid system pressure	5MPa
CNC System	Upper-computer software	ZMDE
	Number of numerical control axes	2
Total installed power	11KW
Machine Outline Dimension	L×W×H	4210×2605×2850mm
Weight	Main machine	Approx. 4300Kg
	Chip removal system	Approx. 500Kg

Company Profile
Founded in 2013, ZMDE Co., Ltd. stands at the forefront of innovation as a high-tech enterprise dedicated to the research, development, manufacturing, sales, and service of intelligent assembly building equipment. Recognized as a national leader in specialization and innovation, this 'small giants' enterprise focuses on the steel structure assembly building sector, bringing cutting-edge industrial mother machines and IoT solutions to market.Our primary divisions excel in intelligent control systems and precision plate engineering, ensuring top-notch performance and reliability.
Located in the Lingang New Area, Pudong New District, Shanghai, our headquarters spans 32,000 square meters and houses the esteemed Research Institute of Artificial Intelligence for Assembled Buildings. This facility is pivotal to our management operations and spearheads the R&D of high-end core technologies, including AI for Assembled Buildings, Intelligent Buildings, and the Industrial Internet of Things (IoT).
Our Shandong base, situated in Weicheng District, Weifang City, focuses on the innovation and production of intelligent industrial mother machines for steel beams and walls of assembled buildings, driving advancement in this critical field.This strategic location is dedicated to the development and manufacturing of industrial mother machines for walls of assembled buildings, pushing the boundaries of construction technology.

FAQ
ZMDE Automated High Speed Plate Drilling System Beam Line Drilling Machine 1.Q: What is the minimum order quantity?
A: 1PCS.

2.Q: What are the payment terms?
A: L/C; T/T.

3.Q: How long is the delivery time?
A: 30 Days.

4.Q:How long is the warranty period?
A: 1 Year.(Original Manufacturers. equipment parts can be achieved lifelong maintenance)

---
