Metal Sumore Made in Shanghai China Small CNC Milling Machining Training with CE

Product Description

Product Description

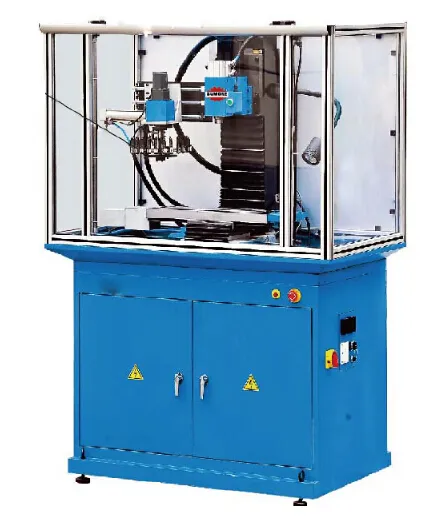

Government Project Education School Training Equipment Small CNC Milling Machine Center with 12 Tools ATC SP2215A
(VMC from small to big size, the web pages are limited, so please contact us for more details)
-----------------------
Quick Details Table size : 550x160mm
X-axis travel: 280mm
Spindle taper: ISO20
1000W brushless motor
PC based or SIEMENS control system -----------------------
Product Description
Machine operating system for SIEMENS802S system that can control three axes: X, Y, Z-axis linear interpolation. rectangular plastic coated rail rigidity, abrasion resistance, high stability, high load capacity. CNC control system could be adapted by step motor or servo motor, providing good cost-effective scheme to customers. Machine stand and machine body are designed separately for easy and flexible installment by the user. The high speed, high precision, high rigidity spindle unit Easy work with big work table Can be customized according to customer requirements of the corresponding products The high accuracy pitch compensation, the drive shaft adopts high precision laser measuring instrument compensation make each axis positioning accuracy is more accurate, more suitable for processing high precision parts and mold manufacturing 12 tools ATC. 4th driver and socket installed as optional

Product Parameters

Model		SP2215A
TABLE	Table size	550×160mm
	T slot	3×12×43
	Max. load	30kg
travel	X travel	270mm
	Y travel	152mm
	Z travel	270mm
	Spindle nose to table	80-350mm
	Spindle center to column	215mm
spindle	Spindle taper	ISO20
	Spindle motor	1000w
	Spindle speed	100-5000r/min
Feed (stepper motor) Servo optional	X.Y.Z fast move speed	2000mm/min
	X.Y.Zfast feeding speed	500mm/min
	X.Y.axis power	4N/m
	Z axis pwoer	6N/m
Tool changer	Tool number	12
	Tool diameter	10mm
	Max tool length	110mm
	Tool weight	0.5kg
	Tool changing time	8s
accuracy	Positioning accuracy	0.01mm
	Repeatability accuracy	0.01mm
Others	Pneumatic supply	0.6 Mpa
	Power	230/120V
	Weight(NW/GW)	390/470kg
	Overall dimension/ Packing size	1280×895×1845mm/ 1420×1060×2035mm

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!

---
