Qizhi 500mm Pneumatic Flange Facing Machine

Product Description

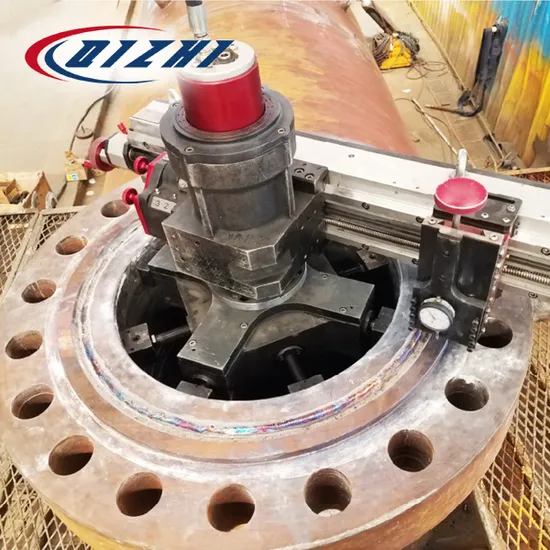

QIZHI Internal installed Pneumatic Flange Facing Machine
The internal and external installed flange end facing machines adopt innovative design, adopting new linear ball screw technology and power feed tool holders. It has below features: Easy to assemble Independent locking base After product delivery, it can be immediately used for standard flanges and sealing grooves processing. Specifications

Model	Facing Range		Installation Mode	Drive Mode
				Pneumatic	hydraulic
QZ180MME	0-7"	0-185mm	External installed	*
QZ300MME	0-12"	0-305mm		*
QZ600MME	0-24"	0-610mm		*
QZ355MM	2-14"	50-355mm	Internal installed	*
QZ610MM*	2-24"	50-610mm		*
QZ860MM	6-34"	152-865mm		*
QZ1000MM	6-40"	152-1016mm		*
QZ1500MM	12-60"	305-1500mm		*
QZ2000MM	24-80"	610-2032mm		*	*
QZ3000MM	42-120"	1067-3050mm		*	*
QZ3500MM	55-140"	1270-3556mm		*	*
QZ4000MM	60-160"	1524-4064mm		*	*

High torque and low noise transmission Both axial and radial automatic tool feeding Power type rotatable tool holder Quick assembly adjustable base clamp
QIZHI machine provides complete fabrication solution for wind tower fabrication, including plate cutting machine, plate rolling machine, shell and shell fitting up rotator, welding column and boom, grinding machine, repair machine, flange facing machine.
Wind Tower Fabrication Machine

---
