ERW Carbon Steel Pipe Manufacturer Q345b, S355jr DIN Steel Pipe Carbon DIN Tube Sheet

Product Description

Company Profile
OUR ADVANTAGE
1.SGS and BV Audited company.
2.Industry experience over 20 years.
3.Management Systems-Internal Software
4.Finished Product Inventory-More Than 5000 Tons.
5.Raw Material inventory -Over 800 Mertic Tons.
6.Shipment of goods -More than 50 countries worldwide.
7.We have the most convenient transport and prompt delivery.
8.We offer competitive price with best service.
9.We have high technical production line with top quality products.
10.We have win high reputation based on best quality products.
Product Description
For Carbon ERW steel pipe
Dimensions: OD: 20mm~1067mm, Thickness: 1.0~25.0mm, Length: ≤ 13m
2)Material: Q195, Q215, Q235, Q345, STK500, GR. B, X42, X46, X52, X56, X60, X65, X70, L245, X290
3) Standard: GB/T 3091-2001, BS1387-1985, ASTM A53. API 5L/API 5CT
4) Use: Used for low pressure liquids delivery, such as water, gas, and oil5) Packing: In hexagon bundle with pvc plastic sheet and slings
Electric Resistance Welded Steel Pipe
Usage: Used for low pressure liquid delivery, such as water, gas, and oil. Oil drilling and machinery manufacturing, etc.
ERW: Electric Resistance Welded pipe
HFI: High Frequency Induction weld pipe
EFW: Electric Fusion Welded Pipe
Standard: API 5L, API 5CT, ASTM 53, EN10217, DIN 2458. IS 3589, JIS G3452, BS1387
Certificate: API 5L PSL1/ PSL2, API 5CT
Out Diameter: 21.3mm - 610mm
Wall Thickness: 1.8 - 22mm/li>
Length: 0.3 12m
Steel Grade: API 5L: GR B, X42, X46, X56, X60, X65, X70ASTM A53: GR A, GR B, GR CEN: S275, S275JR, S355JRH, S355J2HGB: Q195, Q215, Q235, Q345, L175, L210, L245
Surface: Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer's requirement
Test: Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test)
ERW Carbon Steel Pipe Manufacturer Q345b, S355jr DIN Steel Pipe
SPECIFICATIONS

Products:
steel and tube	Specification (mm)
	Size	Thickness	Length
Round Pipe	OD10mm - 1200mm	0.3mm 26mm	Up to you
Square Pipe	10mm*10mm - 1200mm*1200mm	0.3mm 26.0mm
Rectangular Pipe	20mm*10mm - 800mm*400mm	0.5mm 26.0mm
L/T/Z window section	28mm/38mm	0.5mm-1.5mm
Detail information:
Material	Q195 → Grade B, SS330,SPHC, S185 Q215 → Grade C,CS Type B,SS330, SPHC Q235 → Grade D,SS400,S235JR,S235JO,S235J2 Q345 → SS500,ST52
Standard	API,ASTM,JIS,GB,EN BS EN10296,BS EN10025,BS EN10297,BS6323, BSEN10219,BSEN10217,GB/T13793-1992,GB/T14291-2006 GB/T3091-1993,GB/T3092-1993,GB3640-88
Surface	Bared Black Painted (varnish coating) Galvanized With Oiled PE, FBE, corrosion resistant coating
Thickness Tolerance	+/- .2%
Packing	1) Bundle, 2) In Bulk 3) Bags 4) Clients' Requirements 5)Seaproof packing or up to you
Technique	Electronic Resistance Welded (ERW ) Electronic Fusion Welded (EFW) Double Submerged Arc Welded (DSAW)
Delivery Port	Tianjin,Qingdao China
Lead Time	Up to order quantity
Inspection	With Hydraulic Testing, Eddy Current , Infrared Test
MOQ	5 Tons per size
Production Capacity	60000MT per month
Main Market	America(North and South), Africa, Southeast of Asia, Russia and Australia

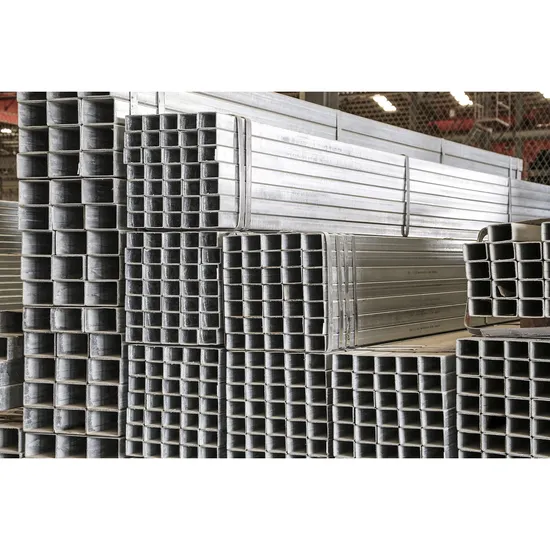

OUR PRODUCTS Detailed Photos
Certifications
OUR TEAMS AND CERTIFICATES
FAQ
Q1. Where is your factory ?
A1: Our company's processing center is located in Tianjin, China.
Which is well equipped with kinds of machines, such as laser cutting machine,mirror polishing machine and so on.We can provide a wide range of personalized services according to the customers' needs.
Q2. What are your company's main products ?
A2: Our main products are stainless steel plate,aluminum ,copper etc.
Q3. How do you control quality ?
A3: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
Q4. What are the advantages of your company ?
A4: We have many professionals, technical personnel, more competitive prices and best after-dales service than other companies.
Q5. How many coutries you already exported ?
A5: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.
Q6. Can you provide sample ?
A6: Small samples in store and can provide the samples for free. Customized samples will take about 5-7
days.

---
