Xinzhe Horizontal Machining Center with Integrated CNC Lathe, and More 3/4/5 Axis CNC Lathe Milling Cutting Machine Center Industrial Machinery CNC Lathe

Product Description

DESCRIPTION

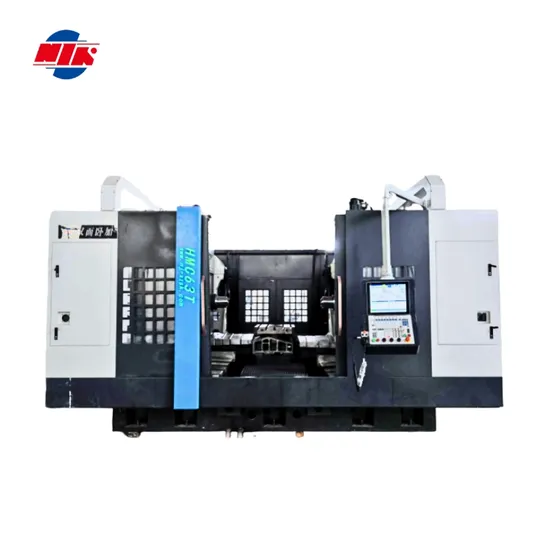

The machine is a fixed layout with the table centred in the middle and the three-coordinate spindle heads on both sides realise the machining structure of the process contents on both sides respectively, which is mainly used for the automatic machining of drilling, expanding, hinging, tapping, boring and other hole-type processes and milling processes such as milling planes, curved surfaces, grooves and other milling processes of multiple side processes of the parts and components, and it can symmetrically process the same process contents at the same time, and it can also process different parts and different processes independently of each other.It can process the same process contents symmetrically at the same time, and can also process different parts and process contents independently, which can maximally improve the utilisation rate of the machine tool; the machining process is fully numerical control, and the operation can be started at any station, which is suitable for the requirement of mass production of parts.
PARAMETER

Item	HMC-63HT	HMC-63HTR		HMC-63HTJ
Table size (W×L)	630×700 mm	630×630 mm		630×1300 mm
Rotary table indexing	1 ×360 °	0.001 °		----------
Table T-slot (number of slots - width × spacing)	5-18×125 mm	5-18×125 mm		5-18×100 mm
Workpiece weight on table	1500 kg	1200 kg		3000 kg
Distance from spindle endface to table centre	150~900mm
Distance between two spindle end faces	300~1800mm
Distance from spindle centre line to table plane	120~870mm			150~900mm
Spindle longitudinal travel (X-axis)	1050mm
Spindle up and down travel (Y-axis)	750 mm
Spindle front-back travel (Z-axis)	750 mm
Spindle taper hole (shank)	BT50
Spindle servo motor power (S1/S2-15min)	15/18.5 kW
Spindle motor output torque (S1/S2-15min)	143/236Nm
			(OPT 214.5/354Nm)
Spindle speed range	45~6000r/min		(OPT 40~4500r/min)
X/Y/Z axis rapid traverse speed	15/20/20 m/min ,(Rotary table:1800 °/min)
Feed speed range	5~6000mm/min
X/Y/Z axis positioning accuracy (VDI)	0.016/0.012/0.012mm
X/Y/Z-axis repeatability (VDI)	0.010/0.008/0.008mm
Indexing rotary table positioning accuracy/repeat positioning accuracy	10 ″/5 ″	15 ″/6 ″		----------
Tool magazine type	BT50
Tool magazine capacity	24
Tool change time (tool to tool)	5 Sec
Maximum tool diameter/length	Φ 110mm(lit. adjacent to no knifeΦ180mm)/500mm
Maximum tool weight	18kg

DETAILS
FACTORY SHOW



COMPANY PROFILE
Nanjing XinZhe CNC Machine Tool Co.,Ltd. was established in 2007. Located in Guabu CNC Industrial Park, Liuhe District, Nanjing, the company is mainly engaged in the research and development, manufacturing, technical consulting, sales and service of CNC machine tools, intelligent equipment and intelligent manufacturing systems.
The company's main products include vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, vertical lathes and various special machine tools, intelligent manufacturing production lines, and intelligent manufacturing workshop planning and construction, and many other kinds of CNC products..
In addition to the production base in Nanjing, the company has established branches in Chongqing and Guangdong.

The company insists on being customer-centered and constantly innovating. From the standard vertical, horizontal, and gantry processing centers, it gradually develops a variety of high-efficiency and labor-saving automatic special machine tools and production lines to meet the processing needs of customers. Customers are spread all over the country and abroad to many countries.The company has independently developed special machines and automated
production lines for full CNC parts machining, and has made major breakthroughs in leading companies of the industry such as SINOSTEEL, SINOTRUK, and Fuhua Heavy Industries.
The company adheres to the corporate tenet of "attitude determines everything, quality makes the future", carries forward the spirit of innovation and excellence, builds a positive, dedicated and loving team, serves customers with heart and soul, and produces high-quality products!
CERTIFICATIONS

PACKAGE

FAQ

FAQ
Q1 A1	How can I choose the most suitable machines ? If you are the factory, please tell me your specifications request or our workpiece drawing, our professional engineer team will suggest the suitable model for you. If you are the trading company, you can tell us your customer's request or we will suggest you our best selling model for you.
Q2 A2	Where is our factory located? How can I visit there? Our factory is located in NanJing City, JiangSu Province, China. You are warmly welcomed to visit us. We can send the invitation letter to you and pick up you from Nanjing Airport to our factory.
Q3 A3	How is the warranty? We will supply standard ports and accessories with our machine when shipment. Within one year after receiving our machines, in the right operation, if there are any damaged parts or accessories, we will replace them by air or express immediately free of charge.
Q4 A4	Do you have a stock? Our Chinese market order is very good, we have many machines produce everyday and delivery everyday. Our fastest delivery time for 1~5 sets will be within one month.
Q5 A5	How about your quality? We have approved the ISO9001:2008 Quality management system. ISO14001 Environmental management system. Most products have been approved by the European and American safety standards, including CE,GS, EMS & UL. 90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6 A6	Do you have professional engineers? Yeah, we have professional engineers and designers, We can provide OEM services. The most important development part is our technical and quality.
Q7 A7	What is the package? Machine is by waterproof cloth to covered. And e packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q8 A8	What's your main products of your company? We specialized in all kinds of machines ,such as Vertical Machining Center, Horizontal Machining Center, 5 axis Machining Center, Gantry Machining Center, CNC Vertical Chuck Turning Machine, Boring and Milling Machine and Custom Machine Tool .
Q9 A9	What's the MOQ? One set. The big discount will start from three sets.
Q10 A10	What's the Payment Terms ? T/T,30% initial payment when order,70% balance payment before shipment; Irrevocable LC. Other way can discuss according to different situation.
Q11 A11	What is the charge of installing and commissioning? Most of machines you can install well according to our drawing. For some machines, it need our technician to go to your local site and help you install and commission machines. At the same time, our technician will train your workers, it will table about 7~15days for different machines. The return air-tickets, accommodation, food, salary (USD200.00/day for each technician), etc will be born by the end-user.

---
