Wecoil-HCT-660 2-6mm 6 Axis CNC Compression Spring Coiling Machine
Negotiable
1 Set
(MOQ)
Basic Info.
Model NO.
HCT-660
Axis Count
6 Axis
Warranty
1 Year
Max outside diameter
Φ110mm
Max pitch of spring
80mm
Max feeding speed
60m/min
Spring index
3
Feeding rollers
3 pairs
Feeding motor
7.5kw
Upper cutter motor
5.5kw
Under cutter motor
5.5kw
Cam motor
2.7kw*2
Pitch motor
2.0kw
Weight
4800kg
Transport Package
Vacuum Packaging
Specification
L1750*W1900*H2100mm
Trademark
WECOIL
Origin
China
HS Code
84633000
Production Capacity
500 Sets
Product Description
Machine Details

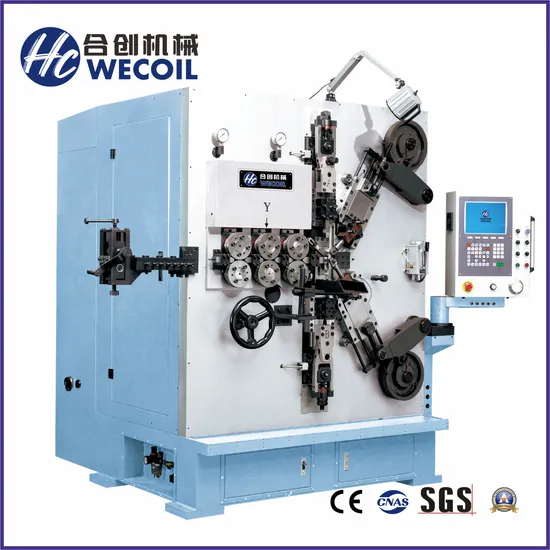

HCT-660 6-axis High speed Spring Coiling Machine is composed by 6 Japan motor and TaiWan control system, each axis can work independently and synchronously. *Forming spring within one minute *Saving testing time and raw material *Easily for operation *High precision *Low noise
HCT-660 has the function of straight cutting, subtend cutting and Rotary cutting.
Company Profiles
Over 30 high level specialized technical personnel 30 people. Workshop area over 4000 square meters.
