Efficient 3.5 Ton LPG Forklift Truck Featuring Nissan Power

Product Description

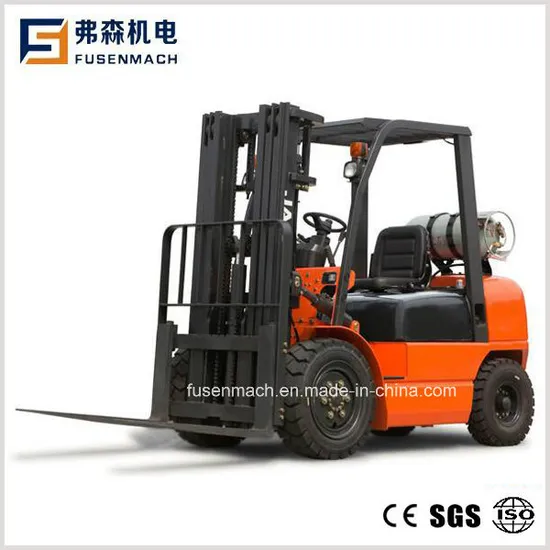

3.5 Ton LPG Forklift Cpqd35 with Nissan K21 Engine
Model CPQD35
Load capacity: 3500kg
Standard mast: 2-stage
Max. lifting height: 3m
Container Mast (Optional): 2-stage or 3-stage full free mast (3m-6m)
Engine: Chinese engine (NISSAN engine for option)
Certificate: ISO,CE

Model			Unit	CPQD20	CPQD30	CPQD35
Load capacity			mm	2000	3000	3500
Load center			mm	500	500	500
Tire type (front/rear)				7.00-12-12PR	28*9-15-12PR 6.50-10-10-PR	28*9-15-12PR 6.50-10-10-PR
Tilting angles (forward-backward)				6°/12°	6°/12°	6°/12°
Free lift			mm	240	175	240
Max lifting speeds (without load/with load)			mm	530/500	520/470	530/500
Max driving speeds (without load/with load)			mm	20/19.5	20/19.5	20/19.5
Max lowering speeds (without load/with load )			mm	540/550	520/550	540/550
Max drawbar pull (without load/with load)			kg	930/1170	1038/1146	876/1530
Max gradeability (without load/with load)			%	20	15	20
Min. Turning Radius			mm	2170	2420	2420
Exterior Size	Overhead Length	without fork	mm	2505	2680	2745
		with fork	mm	3425	3750	3815
	Overhead Width	Outboard	mm	1160	1225	1225
		Frame	mm	1150	1150	1150
	Height	Mast drop	mm	1995	1995	2055
		Front-wheel Overhead	mm	2070	2070	2070
		Max. lift	mm	3750	3760	4240
Tire	Specs	Fornt		7.00-12-12PR	28x9-15-12PR	28x9-15-12PR
		Back		6.00-9-10PR	6.50-10-10PR	6.50-10-10PR
Wheelbase			mm	1600	1700	1700
Tread		Fornt	mm	970	1000	1000
		Back	mm	970	970	970
Turning Radius	Low-water mark(mast)		mm	110	110	110
	Frame		mm	115	115	115
Overhang (front)			mm	485	498	498
Overhang (back)			mm	420	495	495
Min intersecting aisle			mm	1920	2120	2120
Engine	Model			NISSAN/WF/BY	NISSAN/WF/BY	NISSAN/WF/BY
	Rated Output		kw/rpm	37/2650	37/2650	42/2650
	Rating Torque		N.m/rpm	148/2000	148/2000	174/2000
	Number or Cylinder			4	4	4
Inside cab seat height			mm	1005	1005	1005
Weight			kg	3400	4410	4790
Fork Size(L*W*H)			mm	920x122x40	1070X125X45	1070x130x45

Wuhan Fusen Machinery Co.,Ltd is a professional supplier of forklift spare parts in China.
Our company specializes in various kinds forklift parts for both domestic and international markets.
Our product category covers forklift power system, hydraulic system, travel system, drive system, control system etc.
We can offer genuine spare parts for famous brands like HELI, JAC, HANGCHA, XGMA, Lonking, Zoomlion, Chery, Komatsu ,TCM, TOYOTA, , NISSAN, MITSUBISHI, LINDE, HYSTER, DAEWOO, TAILIFT, etc.
Please submit your spare parts request to us, and list products name, model, equipment serial number, description of required parts.

---
