Semi-Auto Double Wire Loop Binding and Forming Machine for Brochure

Product Description

Double Wire Forming Machine DFA-21 / DFA-31
This machine is applied to the mass production of double loops wire (twin-ring), which is widely used in notebooks, workbooks, calendars, etc.
Technical data:
Speed: 350(Pitch 2:1)Loops/min
500(Pitch 3:1) Loops/min
Power: 3PH 380V 50/60HZ (other voltage on request)
Machine Dimensions (L×W×H):
Forming Machine: 2.4×0.65×1.7m
Coiling machine: 1.3×1.0×1.2m
Paper cutting machine: 0.6×0.5×1.4m
Weight: 500Kg

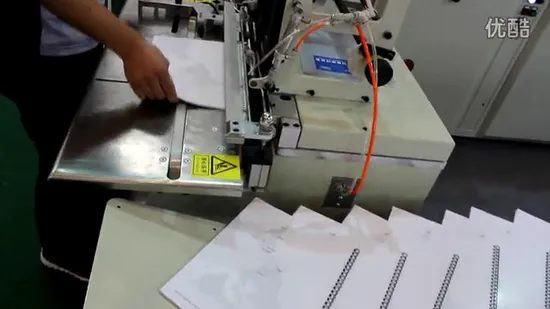

Double Wire Binding Machine DCA-520
The machine is used for binding double wire books, notebooks, calendars, etc. With the integration of automatic cutting, loops-counting, skip binding, and closing, it increases the production efficiency and lowered the cost remarkably. It's easy to change mold and optional hanger attachment.
Technical data:
Work Speed: up to 1000 Volume/hour(Effective speed depends on operator's ability)
Binding Capacity: 1/4" - 3/4"
Max. Binding Length: 520mm
Air Pressure: 5-8Bar
Workbench Dimension: 680×310mm
Power: 1PH 220V 50/60HZ (other voltage on request)
Machine Dimensions (L×W×H):
Main machine dimensions: 0.8×0.75×1.15m
Feeding reel dimensions: 0.6×0.5×1.35m
Weight: 350Kg
Loading:
Exhibition:
Common questions and answers:
1. Are your a factory or trading company?
We are a professional double wire products machines maker since 2008 and we are the audited supplier in MIC supervised by BV.
2. What about the warranty time?
12 months when you receive the machine. When you get the machine we could send the engineer to supply training service for the first time but the traffic fees and the accommodation arrangement should be on your side. Automatic inline machine training need for 3-4 days and semi-auto machine for 1-2 days.
3. How many molds attached to one machine?
One machine attaches one mold and if you need more sizes, you could make the order.
4.How about spare parts?
Most of the electrical parts and bearings we used are international brands such as SIEMENS AND SCHNEIDER. You could buy them in your local market. For the molds, we have stocks of normal double wire binding size molds. The special mold sizes need 10-15 days.
5. Do you have a dealer in my country?
For the hot selling countries, we have the dealers could supply training service for you and detail your could contact with us.

---
