Granite Marble Stone Bridge Saw with Miter Head 45 Angle (XZQQ625A)

Product Description

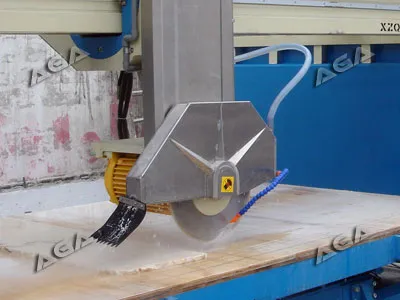

Granite Marble Stone Bridge Saw with Miter Head 45 Angle
1.Product No.:XZQQ625A
2. Good services and warranty.
3. High power and easily operation.Granite Marble Stone Bridge Saw Info:
The mechanical body is made of very strong cast iron for stability and long lifetime. It also provides covered oil bath for the movements of bridge rails.
The machine is a popular bridge saw that widely used in trimming and fabricating slab, tile, countertops, etc. It is able to cut 3200mm length and 2000mm width and 175mm thick (126"×78" ×7").
The laser guide and sensors gives high accuracy for the machining tolerance.
The blade travels on the beam and it also provides power tilting 0 - 45 degree for mitre edge trim.
The table turns 0 - 360 degree automatically and it also tilts 0 - 85 degree hydraulic for easy load and unload of the material.
This monobloc bridge saw machine is computer control and able to program for up to 99 repeat cuts automatically and also capable of manual operation.
Usage:
Automatic Bridge Saw for cutting granite marble and other stones.
Granite Marble Stone Bridge Saw Specification:

Blade size	400-625mm 16"-25"
Cut length	3200mm 126"
Cut width	2000mm 78"
Cut thick	170mm 7"
Blade tilt	0 - 45°
Table rotate	0 - 360°
Table tilt	0 - 85°
Spindle motor	15kW 20HP
Size (L×W×H)	6×3×2.6 m
Weight	7200 Kg

Granite Marble Stone Bridge Saw Features:
1.Computer control operation
2.Cutting slabs into tiles and cut to size
3.Blade tilting: 45°
4.Table tilting: 0-85°
5.table rotation: 0-360° (stopping at each 45°)
6.Laser guide with wireless remote
7.Spindle Motor:15Kw (20HP)
8.Movements of bridge rails
9.Automatic water control
10.Warranty: one year
11.Longevity:15 years
Guarantee & after sale service:
1) Warranty for one year. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2) when receiving the 30% down payment, we will prepare machine for you, it will take 2-5 weeks, to get the shipping pictures for you.
3) 24-hour technical support Internet or by Telephone, free instructions and Problem solving.
