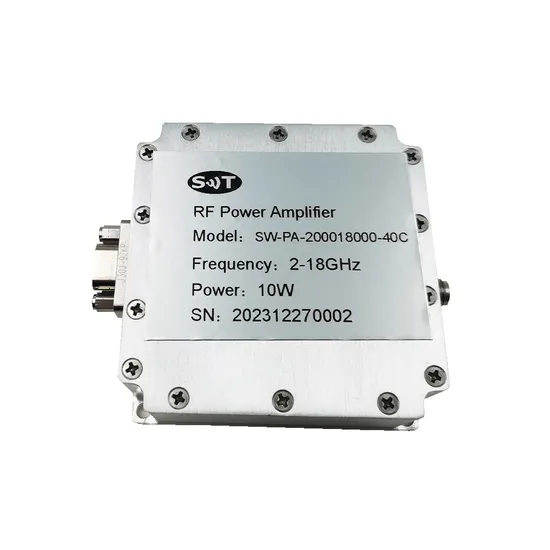

2-18GHz 10W RF Power Amplifier for Wideband Applications Effectively Amplifying Signals Across Multiple Frequency Ranges

Product Description

2-18GHz 10W RF Power Amplifier for wideband applications effectively amplifying signals across multiple frequency ranges
Product Description
Frequency Range: This RF power amplifier operates in the wideband frequency range of 2GHz to 18GHz, covering a broad spectrum of RF applications.
Power Output: It provides a power output of 10W, suitable for applications with moderate power requirements.
Wideband Design: Designed for wideband applications, capable of effectively amplifying signals across multiple frequency ranges.
Applications: Suitable for various RF systems, including communication systems, radar systems, measurement and testing equipment, and more.
Stability and Reliability: Engineered for stability and reliability, suitable for long-term stable operation and use in demanding environments.
Overall, this 2-18GHz 10W RF Power Amplifier features a wideband design, moderate power output, and stability, making it suitable for amplifying RF signals across a wide frequency range.
ELECTRICAL SPECIFICATIONS@25˚C

PARAMETER	MIN	TYP.	MAX	UNIT
Operating Frequency	2		18	GHz
RF INPUT		0		dBm
P-sat Power Output		50		W
Power Gain		47		dB
Power Gain Flatness		±3.5		dB
Harmonic Signals		-10		dBc
Input VSWR		2	2.5
Operating Voltage		28		V DC

ENVIRONMENTAL RATINGS

PARAMETER	MIN	MAX	UNIT
Operating Temp.	-40	+85	°C
Storage Temp.	-40	+85	°C
Amplifier Safeguard Temp.	+90		°C
Protections	With over temperature protection, input over power protection, over voltage protection, over current protection

MECHANICAL SPECIFICATIONS

PARAMETER	MIN	MAX	UNIT
Operating Temp.	-40	+85	°C
Storage Temp.	-40	+85	°C
Amplifier Safeguard Temp.	+90		°C
Protections	With over temperature protection, input over power protection, over voltage protection, over current protection

INPUT/OUTPUT panel Connector
AMPLIFIER CONNECTOR TYPE:			--
TRIAD CABLE PART NUMBER:			--
NUMBER	interface type		DESCRIPTION
X1		SMA-FK	RF IN
X2		SMA-FK	RF OUT
X6		D-SUB	DC & Control interface

Connector Definition
AMPLIFIER CONNECTOR TYPE:		D-SUB
TRIAD CABLE PART NUMBER:		--
NUMBER	Definition	DESCRIPTION
1	VDD	28V
2	VDD	28V
3	GND	GND
4	GND	GND
5	PA Enable	TTL Hi= Enable, TTL Lo = Disable or No Connection
6	Alarm	Alarm (TTL)
7	Temp monitoring	Temperature (Analog)
8	NC	NC
9	NC	NC

Company Profile
Nanjing Shinewave Technology Co., Ltd. is a company specializing in the research and development, production and sales of RF microwave antennas, active and passive components and subsystems. The company's product field covers a variety of microwave communication devices, including anti-jamming antennas, RF power amplifiers, T/R modules, VCO/DROs, microwave filters, duplexers, frequency sources, and related subsystems, which are widely used in mobile communications, radar, and other fields.
In order to meet the special needs and higher requirements of customers, in addition to standard products, we provide customized product development methods. We always provide the customers with fast and high-quality products and services. Showroom
Participation in exhibitions
Why choose us
Staffing
Over ten years' OEM/ODM experience.
R&D team with doctor,master degree talents.
Products covers a wide range of applications.
TECHNICAL SUPPORT
Fast Response
Provide Project Technical AdviceTo Provide Customers With Quality Pre-Sales/Post-Sales Service
PRODUCT SUPPLY
Full Spectrum Products Available
Customer Needs As A Guide
To Provide Customers With Customized Products And Solutions
PRODUCT QUALITY
All Have Passed Various Performance Tests Before DeliveryTo Ensure That The Product is Good And Stable During Use Certifications

FAQ
1. Our Advantages
Relying on the academic research team of famous universities, the company has established an innovative research and development team with doctoral and master's degree talents, and continues to absorb excellent talents in the industry and outstanding students from famous universities to strengthen the team.The company has about twenty authorised invention patents in microwave devices, circuits and antennas. The application field involves radar, electronic countermeasures, aerospace and aviation.
2. About Customised
We can customise according to customer's requirements, just tell us the frequency, gain, power.
3. About Delivery Time
Customised products are normally 4-6 weeks, if in stock 1-2 weeks can be shipped.
4. How quality is guaranteed
1)Quality Control: Strictly testing raw materials and the production process to meet standards.
2)Performance Testing: Conducting functionality and environmental tests to verify power output and other key metrics.
3)Warranty and Support: Providing a warranty period and technical support to address issues during use.
4)Factory Audits: Regularly conducting internal and third-party quality audits.
5. Delivery Method
If you have your own freight forwarder, we can send to your designated freight forwarder, if not, we can choose the most convenient way of delivery, such as DHL, Fedex, air freight, sea freight.
6. Payment Method
L/C,D/A ,D/P,T/T,Western union, Moneygram, Paypal, Alipay, Bank.

---
