| US$3,000.00-6,000.00 | 1 Piece (MOQ) |

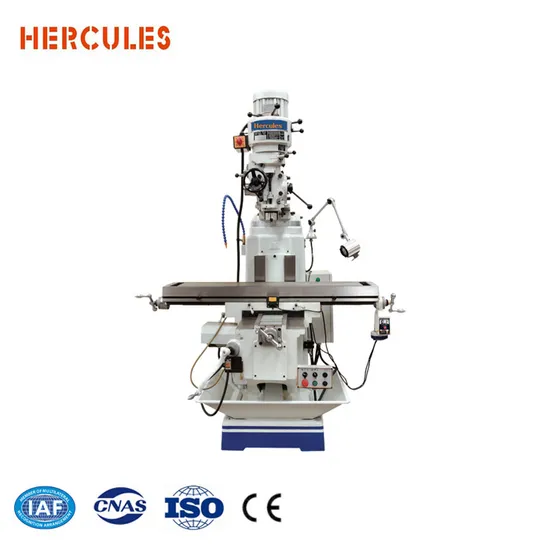

| Model | M2V |
| Precision High Accuracy Series | |
| Table size(L*W)(mm) | 1067x230 |
| Max.load of table (kg) | 300 |
| X axis(mm) | 720 660 with power feed |
| Y axis(mm) | 330 |
| Z axis (mm) | 360 |
| Work table T slot (No.-size*pitch) (mm) | 3-15.88x63.5 |
| Distance between spindle and table(mm) | 50-410 |
| Ram travel (mm) | 380 |
| Travel of spindle quill (mm) | 127 |
| Auto crossward feed(mm/rev) | 0.04/0.08/0.14 |
| Spindle speed(rpm)(60Hz) | 80-5440 rpm 16steps |
| Spindle hole taper | R8 / NT30(optional) |
| Main Motor | 3HP |
| Tilt angle for milling head | left and right±45º forward and backward±45º |
| Guiding tracks(X.Y.Z) | △△△ |
| Dimension(L*W*H)(mm) | 1550x1500x2100 |
| Milling head | Round step milling head |
| Weight (kg) | 950 |
