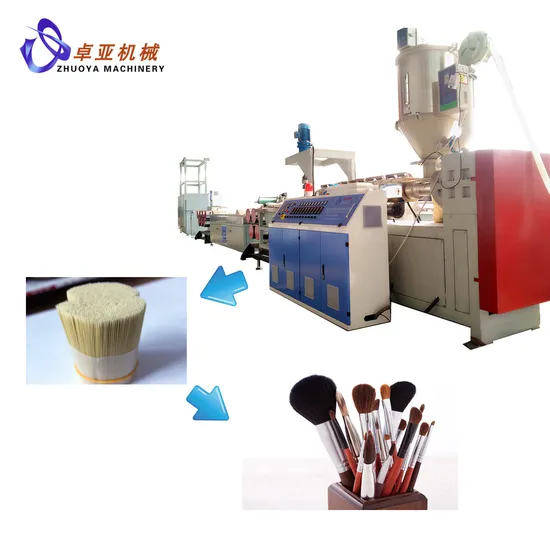

Plastic Filament/Fiber Making Machine Extruder/Extrusion/Extruding Machine for The Cosmetic Brush

Product Description

Product description:
1.The production line consists of dehumidifying and crystallizing system, extruder, screen changer, Meter pump, mold, haul-off, oven, and winder, etc.
2.Production Process:
Material→ Dehumidifying and Crystallizing → Extruding → Filter→ Metering→ Mold → Cooling→ Haul-off →Oven Heating→ Haul-off→ Oven heating→ Haul-off → Glazing → Shaping → Haul-off→ Winding
Main features:
1.Eco-friendly and Extensive Use: With 100% recycled PET bottle flakes, PP pellets, or PE pellets to produce high quality monofilament, like broom filament, brush filament, Chrismas tree filament, fishing net wire, construction safety net, rope filament, etc.
2. Mature Technology and High Performance: New technology, hot wind cycles to dry, increase the viscosity of the bottle flakes material; secondary stretching, increase the tensile strength and elongation, the belt tension reaches more than 10000N
3.Energy Conservation: Precise and energy saving temperature control system, power saving, low noise, low input and high yield.

Equipment List

No.	Name	Quantity
1	SJ80/33 single screw extruder	One set
2	Die head	One set
3	Water-cooling tank	One set
4	First tensile machine	One set
5	Water-heating tank	One set
6	Second tensile machine	One set
7	Third tensile machine	One set
8	Oil bath tank	One set
9	Pneumatic tensioner	One set
10	two position winder	One set

Different Models

Model	Filament Dia.	Production capacity	Total Power
SJ-75	0.05MM-2MM	50-85kg/h	80KW
SJ-80	0.05MM-2MM	70-120kg/h	90KW
SJ-90	0.05MM-2MM	85-150kg/h	100KW

Electrical Configuration:
1) Main motor frequency controller: ABB
2) Temperature controller: OMRON
3) AC contactor: Siemens
4) Thermal overload relay: Siemens
5) Breaker: CHINT or according to customer requirement

---
