Rubber Joint

Product Description

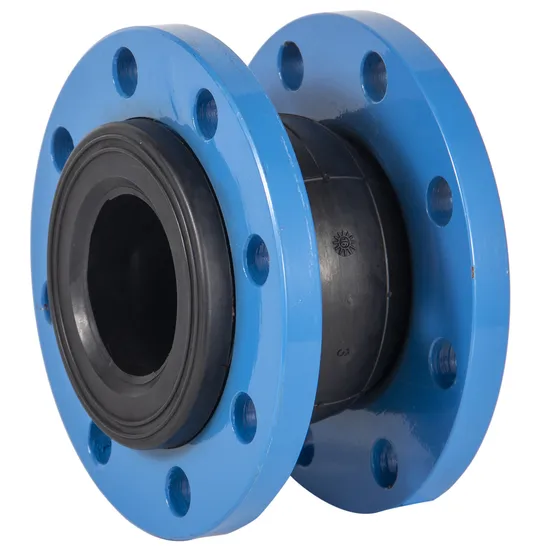

KDTF Single Sphere Rubber Expansion Joint Product Show
Product Description
Purpose
Used to connect the water supply and drainage,air pipelines in building,petroleum and chemical etc.industries and able to eliminate the pipeline shock,compensate the pipeline telescopic amount to make installation easier.
Basic Information

Product Name			KDTF Single Sphere Rubber Expansion Joint
Size			DN50-DN300(2'-12')
Pressure			1.0MPa,1.6MPa.150LB
Working Temperature			<80ºC
Medium			Water, Air, Seawater, Oil

Features
Light weight,easy installation,good shock reducing effect.
Parts Material

Parts Name		Material
Body		EPDM
Reinforce		Nylon Cord Fabric
Reinforcing Wire		Spring Steel Wire
Flange		Mild Steel Zinc Plated

Drawing:
Main Demension:

DN	50	65	80	100	125	150	200	250	300
D	165	185	200	220	250	280	340	405	460
D1	125	145	160	180	210	240	295	355	410
b	15	15	17	18	20	20	22	24	24
n-φd	4-18	4-18	8-18	8-18	8-18	8-22	12-22	12-26	12-26
L	105	115	135	150	165	180	210	230	245
Deflection Angle	15	15	15	15	15	15	10	10	10

More Pictures and Package
Our vlave is packed with export wooden case. We can delivery by sea, by air or combined delivery method.
Quality Control For Finish ProductsWe procures advanced detection equipment and type testing platform for nondestructive testing, spectrum analysis, with a 100% success rate for physical and chemical properties . 100% Final Test During Packing.For Semi Finish ProductsThe quality of each semi-finished product is strictly controlled: we do adhesion, coating thickness, rubber hardness Test
Certificates We have most of the certificates needed on the markets:
Company Profile
Related Products
Applied Projects
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory Located In Tianjin, China.
Q: What's your product range?
A: We produce Butterfly valve, Gate valve, Check valve, Y strainer ,Water Controlling Valve and other Pipe Accessories .
Q: What's Execution Standard?
A: ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.
Q: What's your Strong product ?
A: Centre Line Butterfly valve, Eccentric Butterfly valve ,Resilient Seat Gate valve, and largest size to DN3200 .
Q: How long is your delivery time?
A: Generally it is 10 days if the goods are in stock. or it is 35 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shipment.

---
