Hydraulic Cutting Steel Profile Channel Shape Metal C Purlin Roll Forming Machine

Product Description

Hydraulic Cutting Steel Profile Channel Shape Metal C Purlin Roll Forming machine
Product Description
We are the specialized manufacturer in producing sandwich panel line all kinds of roll forming machines, such as glazed tile roll forming machine, roof/wall panel roll forming machine, double layer roll forming machine, C & Z purlin machine, floor deck roll forming machine, highway guardrail machine, dust shield machine, ridge cap machine, roll shutter door machine, uncoiling & leveling & slitting & recoiling line, all kinds of decoilers and stackers, and many other related equipments like shear, punch, slitter, leveler, crimping curving, bending and so on.

Configurations	Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Body Of Roll Forming Machine, Electro-Motor, Hole-Punch Device ,Cutting Device ,Hydraulic Station ,PLC Control.
Control System	PLC Panasonic Inverter
Main Frame	350mm H-Beam
Main Power	11 kw
Pump Power	7.5kw
Power Supply	3-Phase,380V,50Hz
Forming Speed	12-14m/min
Hydraulic Pressure	18-20MPa
Forming Size	80-300mm
Feeding Thickness	1.5-3.2mm
Roller Station	12 Stands
Roller Diameter	80mm
Backboard Thickness	18mm
Chain Size	66mm
Cutter Standard	Cr12
Roller Standard	Cr12
Cr-Plating Size	0.05mm
Overall Size	9500×1400×1350mm
Total Weight	3

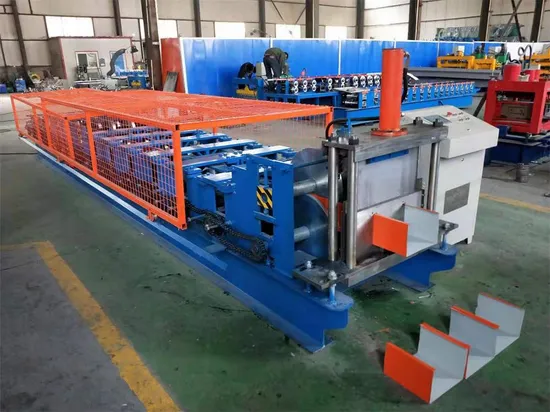

Machine Pictures

Work flow Manual uncoiler-- roll forming machine-- PLC control box-- hydraulic system- output table

Company Information Cangzhou Dixin Roll Forming Machinery Co., Ltd. is a leading manufacturer of roll forming machine in China since 1998. Our main products are:roll forming machine, roof panel roll forming machine, glazed tile roll forming machine , c z roll forming machine and so on.

Packaging & Shipping

Our Services Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller's factory while before delivery.
Delivery: 30 days after receipt of advance payment
Service: we send technician to your country to fix the machine.The buyer should bear all the cost including: visa, Round trip tickets and suitable accommodation, also buyer should pay salary 80USD/day.
Warranty: 12 months limited warranty
During warranty: parts are free but buyer pay for the shipping fee.
Components All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
It is very easy to install the equipment and suitable for producing in the factory.



Contact me If you want to know about more details about our machine ,Please Contact Eire Mobile :8615227510182
Quality first, service first, your satisfaction is the driving force of our progress.

---
