Product Description
Product Description

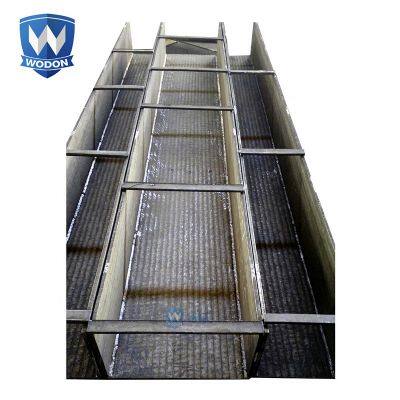

Product Description1. Grade: Q235/Q345+Chromium Carbide Overlay2. Size: customised3. Standard: Enterprise standard4. Certification: ISO9001, SGS, BV.Product NameHardfacing Wear Resistant PlateBrandJiangsu WodonProduction TechniqueOpen arc welding, Submerged arc weldingOverlayChromium carbide overlayFusion linewell bonding, the overlay will penetrate into base plate about 0.8mm to 1.8mmHardnessHRC 55 -65Thickness Tolerance±3mm/mApplicationcoal mining, steel mills, cement, power plant, seaport, etcChromium Carbide OverlayWe have two kinds of production techinique:1, Submerged arc hardfacing welding(Cr30)2, Open arc welding(Cr20)Fusion LineThe overlay and base plate are well boding.Our chromium carbide overlay will penetrate into the base plate 0.8mm-1.8mm, reaching up to 350Mpa in our tests.our wear plates used as excavator liner, bucket liner, and shovel linerLook at the pictures above and see how our wear plates used as excavator liner, bucket liner and shovel liner.Our CertificationsWODON strickly manage and control according ISO management system to assure our products stable performance.Prodcution&QualityProdutionwe can produce wear resistant flux cored welding wires and wear resistant plates.Quality Control:The main ingredients of Wodon plates are C(%) :3.0-5.0 and Cr(%):25-40. This chemical proportion results in a large amount of Cr7C3 chrome carbide hard particles. The micro-hardness (up to HV1800) of these particles throughout the layer will guarantee a super wear resistant surface.Chromium carbide microstructureThe carbide(Cr7C3) volume fraction on the microstructure is over 50%.InspectionOur own inspection teamWe have our own Quality Inspection Technology Department and the team are made of many experience exports with material science bachelor-degree and the leaders with material science master-degree. In the pictures you can also see our equipment in our laboratory. Our inspection team make regular testing on raw material, production process and our products according our company's strict policy.In our Laboratory there are many equipments to test our products. Portable Spectrum can test easily the chemical composition of wear plate surface . We also bought a new Spectro MAXx (a desktop spark direct reading spectrometer) to read the chemical composition directly from the powder. We have a series of metallography experiment instruments, so the metallurgical microstructure can be analysed. The chromium carbide volume fraction on the microstructure is above 50%.We use Rockwell hardness tester to test small sample from our wear plate. The test result are very accurate. We also have portable ultrasonic hardness and thickness testers to test easily the hardness and thickness of wear parts on the scene.Desktop hardness meterThe desktop Rockwell hardness tester can very accurately measure the hardness of small samplesUltrasonic hardness testerThe portable ultrasonic hardness tester can easily measure the surface hardness of wear parts on the scene.Portable spectrumThe portable spectrum can easily test the chemical composition on the scene.Metallurgical microscopeThe metallurgical microscope can test the mircostructure and calculate the chromium carbide volume fraction easily and accurately.Ultrasonic thickness meterThe portable ultrasonic thickness meter can easily test the thickness of wear plate or work work piece.Quartz sand rubber wheel abrasion test machineThis model of test machine is not any standard, but it is mainly for contrast reference to test the wear resistance.Test report of test reportOur advatagesWhy our wear plate has such good wear resistance?1. The overlay chemical composition is the keyThe main ingredients of Wodon plates are C: 3.0~5.0% and Cr: 25~40%. This chemical proportion results in a large amount of prime chromium carbide (Cr7C3) hard particles. The micro-hardness (up to HV1800) of these particles throughout the layer will guarantee a super wear resistant surface.Wear resistance test:Test equipment: Quartz sand rubber wheel abrasion test machine.Conditions: a) choosing same dimension specimens for different materials and wear plate producers b) put them under the same wearing working conditions in our testing equipment. c) 45 minutes for each specimen.The blow Test results show that the life span of Wodon wear plate is 2.5 times higher than domestic wear plates and 1.5 times than imported ones.No.Wear Plate ArtTest TimeWeight Loss of Overlay1Wodon wear plate45 min0.148 g2Imported wear plate45 min0.229 g3Imported wear plate45 min0.237 g4Imported wear plate45 min0.252 g5Domestic wear plate45 min0.385 g6Domestic wear plate45 min0.377 g7Domestic wear plate45 min0.399 g8Domestic wear plate45 min0.371 g2. Chromium carbide microstructureThe wear resistance of wear plate depends mostly on the hardness, shape, size, amount and distribution of the chromium carbide hard particles.As you can check on the picture, the prime chromium carbide (Cr7C3) volume fraction on the microstructure is above 50%3. Bonding strength between the overlay and base plateThe overlay and base plate are very well bonding. The overlay will penetrate into base plate about 0.8 mm~ 1.5 mm, reaching up to 350 Mpa in our tests.FAQQ: Are you trading company or manufacturer ?A: We are ISO certified flux cored welding wire and chromium carbide overlay wear plate factory.Q: Are you able to produce customized chemical composition and dimension?A: Yes, we have our professional R&D department , we could offer special welding wire and wear plate according customers' requirement.Q: How long is your delivery time?A: Generally it is 5-10 days if the goods are in stock. or it is 15-45 days if the goods are not in stock, it is according to quantity. Will try our best to speed up in case of order .Q: Do you provide samples ? is it free or extra ?A: Yes, we could offer the sample for free charge for your reference .Q: What is your terms of payment ?A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 20~30% T/T in advance, balance against the copy of BOL. Other payment terms are negotiable. Q: Do you provide after-sales service ?A: We have a professional after-sales service team, with many years of experience not only on hardfacing products and applications, but also on the operation of application equipment. We are able to quickly solve customer's problems. If there are any quality problems, the responsible person will provide reasonable solutions within 12 hours after being notified.If our product meets your interest, please feel free to contact us as follow:
Company Profile
Jiangsu Wodon Wear Resistant New Material Co., Ltd.
Jiangsu Wodon Wear Resistant New Material Co., Ltd. (China Wodon) is a manufacturing factory specializing in the development and production of wear resistant materials. We are headquartered in Jiangsu. There are over 500 staff, including 60 experienced R&D engineers. Our main products include: chromium carbide overlay (CCO) wear plates, flux cored hardfacing welding wires, etc. With independent intellectual property rights and a number of patents, it has a strong R&D and debugging team, which can provide customers with a streamlined service.Since its inception, with the huge investment and independent technology research and innovation, Wodon has been taking the lead in providing premium quality CCO wear plates, hardfacing welding wires as well as excellent repairing technique, all of which win trust and acceptance from our clients worldwide. Meanwhile, the company also employs many experts and professors in the wear resistant industry as the company's technical consultant to ensure strong technical strength and production capacity, we are dedicated to providing quality and cost-effective wear solutions that completely fulfill the requirements of clients.
