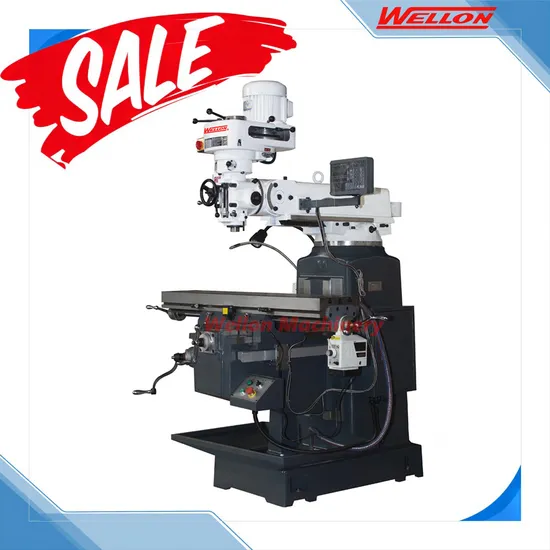

Universal Milling Machine X6325 X6330 Vertical Turret Mill Machine

Product Description

Product Description
Products Description:universal milling machine X6325 X6330 vertical turret mill machine
Performence Features: X6325/X6330 Turret Milling Machine has reasonable construction and superior machining functions such as drilling, boring, milling of plane, inclined plane and slot, and such functions available by use of the corresponding attachments as milling of helix slot, round surface, rack, gear and spline.
2.Rectangular guide way on Y-axis is featured a good rigidity and stability, The guide way on Radial Milling Machine saddle is lined with TF wearable material
3.High speed milling head from Taiwan
4.Harden the slide way and table surface
Technical parameter:

Model	X6325	X6330
Table size	254*1270	305*1370
Long travel(mm)	850	900
Cross travel(mm)	420	360
Vertical travel(mm)	420	400
T-slot No.and size(mm)	3*16	3*16
Ram travel(mm)	470	500
Distance from spindle nose to table(mm)	0-420	0-400
Spindle speed	16steps: 66-4540	16steps: 65-3750
Spindle hole taper	R8 / ISO30	ISO40
Auto.quill feed	3 steps 0.04/0.08/0.15	3 steps 0.04/0.08/0.15
Spindle travel(mm)	127	127
Spindle motor	2.25kw/3hp	3.75kw/5hp
Head swivel	90°	90°
Head tilting	45°	45°
Dimension of package	1516*1550*2080	1566*1650*2080
G.W/set(kgs)	1200/1300	1450/1600

Standard Accessories
Standard configuration:
Collet chuck kits
Drill chuck
Draw bar
Reduction sleeve
Work lamp
Electrical cabinet
Coolant system
Wrenches
Guide way protection
Optional parts:
3-axis DRO
X-axis auto power feed
Y-axis auto power feed
Z-axis auto power feed
Air draw bar
Variable speed
Machine vice 160mm
Separately operate panel box Company Profile
