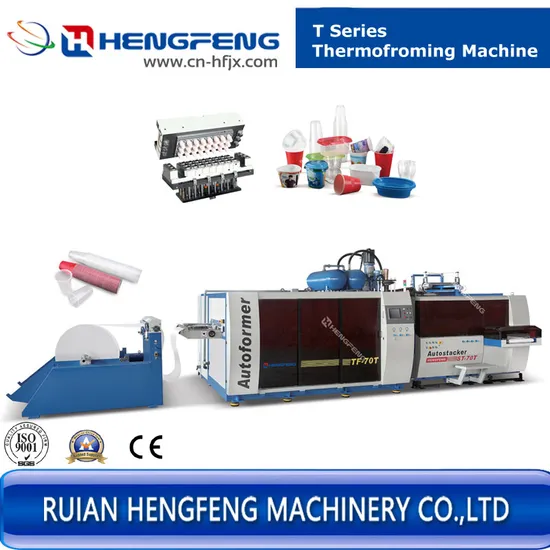

Intelligent Plastic Cup Thermoforming Machine (HFTF-70T-H)

Product Description

Intelligent Plastic Cup Thermoforming Machine (HFTF-70T-H)
Application
Thermoforming Machine are mainly produce upscale plastic containers like cups,bowls,square boxes etc. It is suitable for PP. HIPS. PVC and PET material.
Feature
Cutting in mould
Rapid mold changing device and easy maintenance
Stability and high speed movement is guaranteed by cam driving system
Screen digital setting and storage of machine parameter
Forming with 7bar air pressure,cutting in mould
More sanitary and labor-saving with automatic counting and stacking
Plug and feeding driven by Servo motor
For making plastic cup and suitable material such as PP,PS,PVC, PET,PLA, etc.
Main Specification

1- Max. Forming Area	685×320mm
2- Max. Forming Depth	≤180mm
3- Clamping Force	400KN
4- Sheet Width Range	550-720mm
5- Sheet Thickness	0.35-2.2mm
6- Max. Rolling Diameter	Φ1500mm
7- Air Pressure	0.7-0.85mpa
8- Water Consumption	50L/min
9- Air Consumption	3000L/min
10- Max.Dryer Speed	42 Cycles/min
11- Power (Three Phase Four Wire)	3×380V+N+PE.50HZ
12- Heating Power	130KW
13- Main Motor power	11kw
14- Feeding Motor Power	4.4kw
15- Stretching Servo Motor Power	11kw
16- Machine Weight	12500kg
17- Dimension	12500×3650×3550mm
