Widely Usage & Types Tubular Separator Centrifuge

Product Description

Product Description

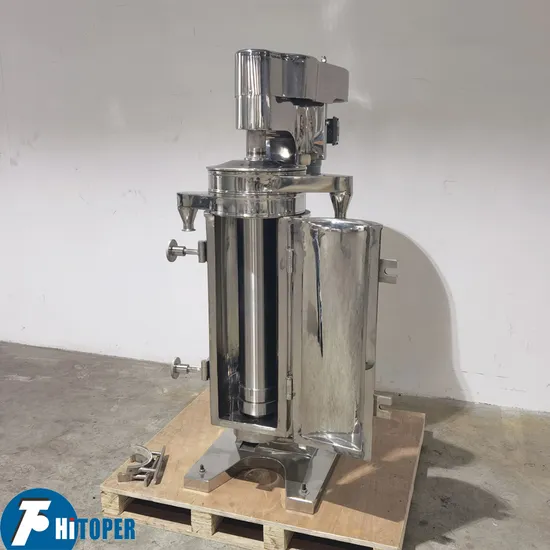

Zhengzhou Toper Industrial Equipment Co., Ltd. Tubular Centrifuge
The tubular centrifuge is a high separation factor centrifugal equipment suitable for extraction, enrichment, and clarification. It is ideal for situations where the specific gravity difference between solid and liquid phases is small, particle size is small with low solid content, and the medium is corrosive. Commonly used in solid-liquid separation for food, chemical, beverage, pharmaceutical, blood products, and intermediates.
The GF series tubular centrifuge is perfect for separating emulsions and mixing various liquid-liquid-solid phases with minimal impurities. For optimal results, it is recommended to clarify the mixture if impurities exceed 1%.
During operation, the mixed slurry is introduced into the bowl through the bottom inlet. The centrifugal force separates the components based on gravity, with heavy liquid forming the outer ring and light liquid the inner ring. The separated liquids are discharged from their respective outlets, while particles settle on the bowl wall for manual removal.
Key advantages include excellent separation efficiency, high yield, compact design, and user-friendly operation.
Product Parameters
Technical Parameters of Tubular Centrifuge: Company: Zhengzhou Toper Industrial Equipment Co., Ltd.
Product Name: Widely Usage Tubular Separator Centrifuge Types
Keywords: 3 Phase Separation, Centrifuge Filtration, Centrifuge Machine Price, Centrifuge for Sale, Centrifuge Supplier, Solid Liquid Liquid Clarify, Tubular Centrifuge Separate, Centrifuge Hot Usage, Solid and Liquid Filter, 2 Phase Separator, High G Factor
Attributes: After-sales Service: All Service Life, Warranty Period: 12 Months From Delivery, Type: Centrifuge

Model	drum					nozzle diameter(mm)	Productivity (water flow) (kg/h)	Power(kw)	weight (kg)
	Inner diameter (mm)	Height (mm)	volume (L)	Rotary speed (r/min)	separation factor
GF45	45	280	0.45	50000	60000	2,3	150	0.75	90
GF75	75	450	2.7	21000	22500	4,6	500	1.5	300
GF105	105	730	6	19000	21000	6,8	1500	2.2	480
GF125	125	730	7.4	16000	18000	5,8,9	2000	3.0	520
GF137	137	730	9	15000	17000	6,8,10	3000	3.0	550
GF150	142	730	10	15000	17000	8,10,12	3000	3.0	550

Detailed Photos


Packaging & Shipping
Wooden Package for Tubular Separator Centrifuge Types by Zhengzhou Toper Industrial Equipment Co., Ltd. Ideal for 3 Phase Separation with high G Factor. All Service Life included. 12 Months Warranty.
Company Profile

Welcome to Zhengzhou Toper Industrial Equipment Co., Ltd. At Zhengzhou Toper, we specialize in manufacturing a wide range of filter equipment to cater to various industries such as mining, metallurgy, petroleum, chemical, and more. Our products include:
Program-controlled automatic filter press Membrane filter press Hydraulic compress filter press Mechanical compress filter press Jack filter press And many more... Our services include providing detailed information about our machines, recommending the most suitable type based on your requirements, arranging factory visits, and sending technical engineers for installation and operation support.
Choose Zhengzhou Toper for top-quality filter equipment that meets your industry needs.

---
