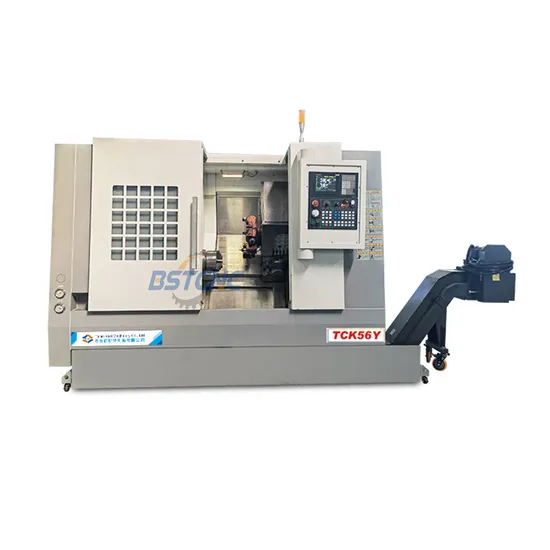

Tck56y Inclined Bed Turning Cutting Drilling Milling Metal CNC Lathe Machine

Product Description

Product Description
The Machine Tool is slant bed Turn-Milling Machine, which has X, Y, Z, C axis, and controlled by servo motor. It has a compact and reasonable structure, the spindle (C axis) driven by servo motor. This machine not only can turn excircle, end face, thread of Rod type and Plate type work piece in kinds of material, but also can mill, drill kinds of radial and axial hook face, etc. many kinds processes. This machine is suitable to process small work piece in a high efficient.
TCK56Y SPECIFICATION AND PARAMETER:

Item		Unit	Specification	Remark
Max.swing diameter over bed		mm	560
Max.processing length		mm	400
Max. processing diameter		mm	300	12-station power turret
Spindle head form			A2-6	Motor spindle
Spindle bore		mm	65
Hole through spindle bore			50
Main spindle	Spindle speed range	r/min	50~4500
	Spindle torque		144N.m
	Main motor power	KW	22/30KW
Travel	Max. travel of X/Z/Y/C	mm	200/550/±35/360°
	Rapid speed of X/Z/Y/C		30/30/12/200m/min
Tailstock travel		mm	450
Tailstock sleeve travel		mm	100
Tailstock sleeve taper			MT5
Turret		Size	BMT40-ER20
		Type	12 station power turret
		Speed range	4000rpm
Cutting Tool size	Outer circle cutting tool	mm	20×20
	Boring tool diameter	mm	Ф25/Ф20
	Live toolholder	mm	BMT40-ER20
ATC choose the nearest tool			Yes
Max. load	Disc Workpiece	kg	200(with chuck and other accessories )
	Shaft workpiece	kg	500(with chuck and other accessories )
Weight		kg	3800
Machine size(LxWxH)		mm	2800×1900×2300

Standard configuration: Optional configuration:
-GSK988TA control system; -Siemens808D,Fanuc0i-TF,Syntec22TA,Mitsubishi;
-3 jaws 8''hydraulic chuck with hydraulic station; -3-jaws 10'' hydraulic chuck;
-12 station power turret BMT40; -12 station Power turret BMT45;
-Hydraulic tailstock; -Chip conveyor ;
-Auto servo bar feeder and parts catcher;

---
