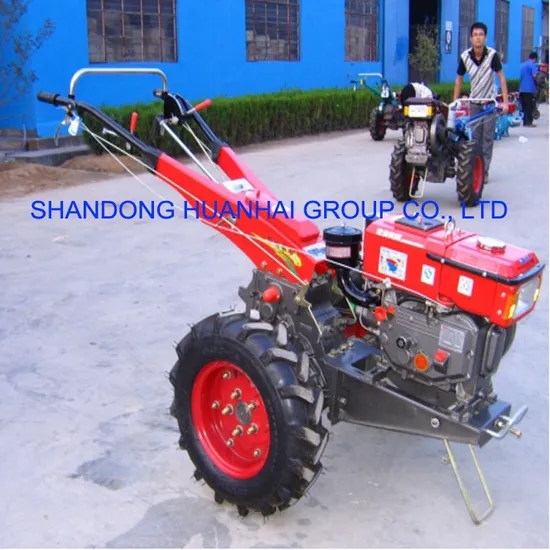

Sh101 Sh121 Sh151 Power Tiller

Product Description

Model	SH101
Engine and power	10HP
Rated Traction(N)	1700
Dimensions(mm)	2090*840*1340
Min.Ground Distance	190
Structure weight(kg)	247
Type of clutch	Single friction flat of constant combination
Type of Steering gear	Meshing sleeve
Type of brake	Cricoids,Inside Expansion
Triangle belt	B1800 2pcs
Capacity of Lubrication oil	4.5
Type of tyre	6.00-12(1.4-2.0kgf/cm²)
Tread(mm)	500-700

Model	SH121
Engine and power	12HP
Rated Traction(N)	1700
Dimensions(mm)	2090*840*1340
Min.Ground Distance	190
Structure weight(kg)	247
Type of clutch	Single friction flat of constant combination
Type of Steering gear	Meshing sleeve
Type of brake	Cricoids,Inside Expansion
Triangle belt	B1800 2pcs
Capacity of Lubrication oil	4.5
Type of tyre	6.00-12(1.4-2.0kgf/cm²)
Tread(mm)	500-700

Model	SH151
Engine and power	15HP
Rated Traction(N)	2400
Dimensions(mm)	2680*960*1250
Min.Ground Distance	190
Structure weight(kg)	360
Type of clutch	Double friction flat of constant combination
Type of Steering gear	Meshing sleeve
Type of brake	Cricoids,Inside Expansion
Triangle belt	B1800 3pcs
Capacity of Lubrication oil	4.5
Type of tyre	6.00-12(1.4-2.0kgf/cm²)
Tread(mm)	580-800

Powered by S195N and SH1100N SH1105N diesel engines, it is a dual-purjpose tractor both for pull-type work and for stationary PTO driven equipment, it has the following features: structural compactness, durability, easy operation,sufficient power output, light weight and good manoeuvreability. An adjustable seat is also provided to ease the work of the operator. This model of tractor is suitable for use in paddy fields, small plots of dry field, orchard, vegetable garden as well as in hilly areas with small inclination. With different kinds of farm implements mounted, the tractor can be used for ploughing, rotary cultivating,harrowing in paddy fields, harvesting, transportation and so on. It can also drive-stationary PTO-driven equipment such as for smallscale drainage and irrigation, sprinkling and spraying, threshing, cotton-ginning,flour-millling, fodder-cutting, and other farm work in the countryside.

---
