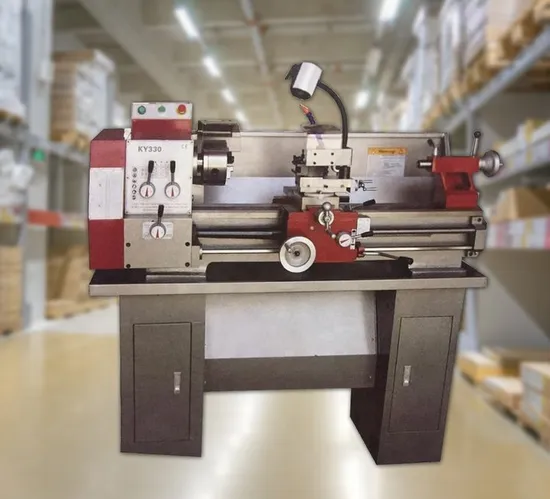

China Conventional Bench Gear Head Universal Precision Metal Hobby Lathe Machine (KY330)

Product Description

Features:
1.widely useful ,heavy duty bench lathe.
2.V-way bed is hardened and precision ground.
3.Spindle is supported by high quality tapered roller bearing.
4.Hardened,precision ground gears in headstock.
5.Gearbox has large feed and threading functions.
6.Carriage mounted spindle control lever.
7.Adjustable gibs for slideways.
8.Automatic feed and threading are fully inter locked.,
9.Tailstock may be offset for turning tapers.
10.Equipped with emergency stop button.

Specification
Model No.	KY330
Max. Swing over bed	330mm
Distance between centers	600mm/800 mm
Max. Swing over cross slide	210mm
Spindle Bore	38mm
Taper of spindle bore	MT.5
Width of bed	160mm
Range of metric thread	17/0.5~4 mm
Range of Inch thread	20/40-9 TPI
Range of longitudinal-feed	0.175~1.396mm/r
Range of cross-feed	0.037~0.296mm/r
Top slide travel	100mm
Cross slide travel	160mm
Max. travel of tailstock sleeve	70mm
Taper of Tailstock sleeve	MT.3
Step of Spindle speeds	12
Range of Spindle speeds	60~1650mm/r
Motor	1100w/220v/ 50HZ (or110v/60HZ)
Net weight	250kg
packing size	1550x770x700mm
Standard Accessories
3-Jaw chuck	1set
Chip tray & splash guard	1set
Safety chuck cover	1set
Dead centers	1set
Change gears	1set
Oil gun	1pc
Allen wrench	1set
Optional Accessories
4-Jaw chuck	1set
Steady rest	1pc
Follow rest	1pc
Face plate	1pc
Rolling center	1pc
Steel Cutter(6pcs)	1set
Stand	1pc
Working lamp	1pc
Leadscrew cover	1set
Coolant system	1set
Foot brake system	1set
Quick change tool post	1set
Digital Readout	1set

---
