Linyi Spindle Wood Veneer Peeling Rotary Machine

Product Description

Spindle Veneer Peeling Machine Product Description
Product Description
Spindle veneer peeling machine is used to process wood segments of a certain length and diameter into continuous veneer strips for the production of plywood, wood sheeting and other wood-based panels.
The general method of peeling is: the left and right clamp the two ends of the wood segment and drive it to rotate, the rotary knife blade installed on the cutter head is parallel to the axis of the card shaft and does feed in its vertical direction, and the veneer of equal thickness is cut out along the direction of the annual ring of the wood segment.
Advantage:

1. Efficient rotary cutting: The card rotary cutting machine adopts advanced rotary cutting technology, which can quickly and accurately complete the rotary cutting work of wood. Its efficient spinning speed greatly improves the production efficiency and reduces the production cost.
2. Precise control: The equipment is equipped with a precise control system, which can realize the precise control of parameters such as the thickness and Angle of rotary cutting. This ensures that the rotary cut wood products have consistent specifications and quality, meeting the requirements of different industries for wood processing accuracy.
3. Easy operation: There is a card cutting machine equipment design is reasonable, the operation is simple and easy to understand. Operators only need to go through a simple training, you can master the operation method of the equipment, to achieve a quick start.

Product Parameters
Product Parameters

No.	Model	LXQ1300L-900
1	Working log length	1300 mm
2	Working log diameter	900 mm
3	Veneer thickness	0.4 - 3.6 mm
4	Motor power	14.3 KW / 17.3 KW
5	Equipment weight	3500 KG
6	Dimensions	3430*1500*1220 mm

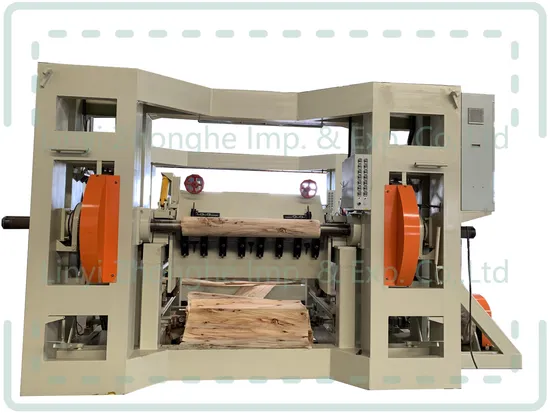

Detailed Photos
Company Profile
Company Profile
Linyi Zhonghe Machinery Company is professional in solutions of wood veneer production machine, plywood production machine, particle board machine, MDF board machine, saw mill machine, wood veneer, plywood, other related material and parts for wood processing industry, construction material and machine, etc.The detail business range is as following:1-wood veneer production machine:Log cutting machine, log debarker, core veneer peeling machine, face veneer peeling machine, wood veneer dryer, wood veneer clipper, wood veneer stacker, veneer tape, etc.2-plywood production machine, film faced plywood machine:Core veneer composer, putty spreader, veneer sanding machine, veneer jointer, glue powder, glue making machine, glue mixer, glue spreader, base plywood forming machine, cold press, hot press, bolier, Double Dimension saw, sanding machine, wood dust collector, stainless steel plates, cushion pads, etc.3- Particle board machine and MDF board machine.4-Saw mill machine: Vertical band saw, horizontal band saw, saw blade sharpener.

Packaging & Shipping
Packing and Shipping
1. Disassemble the whole machine into parts and put them into containers for easy transportation.
2. The container will be transported to the port by special car.
3. A professional shipping team will bring your products to the port you need
4. Take the bill of lading to the port to pick up the goods
FAQ
Frequently Asked Questions
Q1:Can you customize products for clients?
A: Yes We can customize and produce woodworking machines according to the customer's requirements or drawings.
Q2:How can we trust your factory?
A:We recommend that you come to our factory to see the goodsto verify the real situation of the products,and know more about our factory.
Q3:Why does the price often change?
A:The price depends on the latest prices of the raw materials
Q4: How about delivery?
A: when the product is ready,it can be delivered to you after your full
payment.Well provide technical guidance

---
