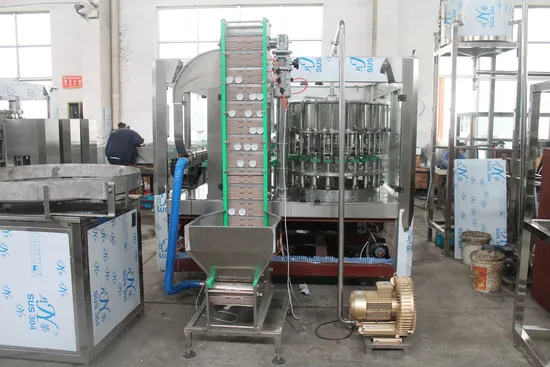

Monoblock Juice Filling Machine for Glass Bottle with Twist off Cap

Product Description

Monoblock Juice Filling Machine for Glass Bottle with Twist Off Cap
Description
1) The glass bottle juice filling machine is used in production of non-soda drink of fruit juice packed in glass bottles.
Washing, filling and capping are integrated in one machine.
2) The most advanced technology from Japan and Germany is employed in the design. The gravity fixed liquid surface filling is used. The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.
3) Spring cramps of the bottle juice filling machine are used in the bottle washing process. The empty bottles can be turned over 180~ along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
4) The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.
5) The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.
6) The frequency changing technology is used to adjust the operation speed steplessly. The production capacity can be displayed digitally and can be adjusted conveniently.
7) The bottle juice filling line is set with a juice return tank system to guarantee the filling effect and juice temperature.
Technical parameter

Model	YFRG12-12-4	YFRG18-18-6	YFRG24-24-8	YFRG32-32-10	YFRG40-40-12
Production B/H(600ml)	4000-5000	6000-8000	8000-12000	12000-15000	16000-20000
Bottle standard	Neck:φ50-100mmHeight150-320mm
Water pressure of washing bottle	0.18-0.25Mpa
Water consumption for washing bottle kg/h	1300	2000	3000	4000	5000
washing position	12	18	24	32	40
Filling position	12	18	24	32	40
Filing precision	+5MM
Gas source pressure	0.4Mpa
Gas consumption(m³/min)	0.3	0.4	0.5	0.7	0.8
Total power kw	4.2	4.5	5	6.2	7.8
Total weight T	2	2.5	3	4	6
Dimension (L*W*H)mm	1800*1600*2100	2500*1750*2100	2700*2100*2100	3500*2100*2100	4000*2200*2200

Main equipment components
Main components of equipment: main machine includes floor racks, glass enclosed box, filling machines, capping machines, motors, wheel drive, wheel-shaped plate, cover and lower cover tanks, bottle chain and electrical control system components. Bottom welding by rectangular tubes and steel plate, on the surface and surrounded by covered stainless steel Panel, high strength, good rigidity, light weight, is the Foundation of whole set equipment, its base fitted with anchor bolts, adjustable level and high and low; Glass sealed around the surrounding box will host, with transparent glass doors at the top monitoring equipment, elegant appearance, the use of safe and reliable.

---
