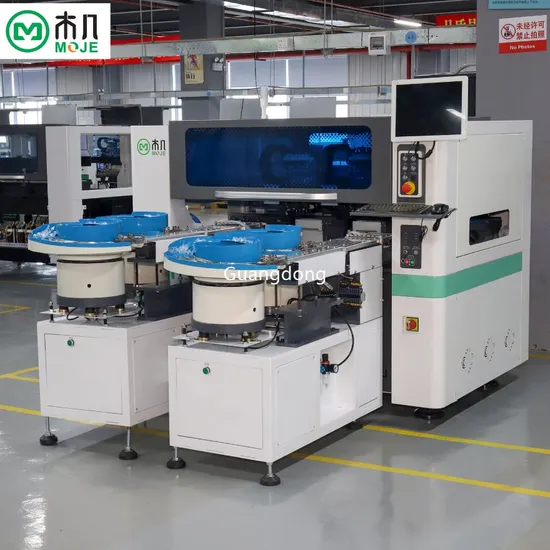

High Speed Transparent Mounter M 712 T for TV Backlight Industry

Product Description

ADVANTAGE DESCRIPTION
-Double head and double workspace mode is adopted for mounting, which is the fastest in the industry
-High precision compensation system is adopted to realize precision compensation and correction in device mounting movement

-Support precision mounting of 1200mm long plate materlals
-The chip head adopts small volume, ultra quiet linear motor control technology
APPLICATION INDUSTRY
-TV backlight lens patch, 3C accessories
SPECIFICATION
Contributed value:
•Low power consumption and small size for customers to save a lot of energy
•Convenient and simple user interaction, for customers to shorten the training cycle of personnel.
Functional characteristics
•01TV:The fastest lens mounting machine in the backlight industry
•02 High speed flying camera filming
•03multifunctional
•04Double head and double working station pick and place
•051200mmSupporting 1200mm long board pick and place
•06Ultra quiet linear motor control technology
Application industry:
•Household appliances and lighting
Applicable scene:
•TV backlight lens pick and place
TV
Mounting
Example
TV lens
Technical specification
•Positioning mode: flying vision + stage vision
•Number of Spindles
•2 Gantry * 6 nozzles (Spacing 20 mm, H15mm)
•Pick and place accuracy:: XY accuracy:
•±0 . 05 mm
•Pick and place speed:CPH:30000(do not sweep blue light )
•Component Range:TV lens and etc.
•PCB dimension:
Minimum:length(50mm)*width(100mm), H:0.5~5mm
Maximum:standard; length(1200mm)*width(400mm), H:0.5~5mm
•Number of packer: supporting two vibrating disks
•Power/air source:380/50Hz/0.5~0.7Mpa
•Power input:5.5KW
•Machine weight:1800Kg
•Dimension:1750(L)*1300(W)*1460(H) ; adding the ground anchor (H):1500mm

---
