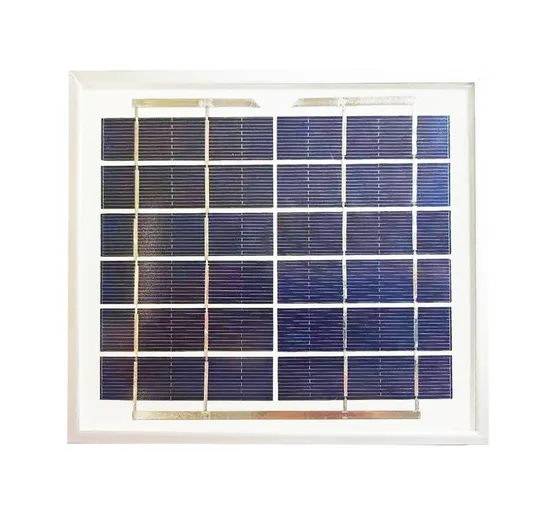

High Quality 3W 5W 6V Mini Solar Panel Solar Monocrystalline Solar Panel for Energy System Panels

Product Description

Product Description
Specification

Model	FS-3WP
Optimum Operating Voltage (Vmp)	6.00 V
Optimum Operating Current (Imp)	0.50 A
Open - Circuit Voltage (Voc)	7.20 V
Short - Circuit Current (Isc)	0.51 A
Maximum Power at STC (Pmax)	3 W
Cell Efficiency	17.5%
Operating Module Temperature	-40 °C to +85 °C
Maximum System Voltage	1000 V DC (IEC) / 600 V DC
Maximum Series Fuse Rating	20 A
Power Tolerance	±3 %

Solar Cell	Mono/Poly-crystalline
No. of Cells	12 (2 × 6)
Dimensions	220x135x18(mm)
Weight	0.4 kgs
Front Glass	3.2 mm (0.13 inches) tempered glass
Frame	ABS plastic frame
Junction Box	IP67 rated
Output Cables	TUV (2Pfg1169:2007)
	Optional
Connectors	Optional

high quality monocrystalline solar panel 3w 6v mini solar panel solar energy system panels High module conversion efficiency
(up to 16%), through superior cell technology and
leading manufacturing capability
Positive tolerance
Guaranteed tolerance from ±3% ensures
power output reliability
Excellent weak light performance
Excellent performance under low light environments
(mornings, evenings, and cloudy days)
Withstand high wind and snow loads
Entire module certified to withstand high wind loads
(2400 Pascal) and snow loads (5400 Pascal)
Project Case
Till now, we have supplied solar products to 100+ companies from all over the world. We build the good relationship with our
clients&provide best quality modules.
Asian: India,Japan,Korea,Singapore,Pakistan,Malaysia,Philippines,Israel,Bangladesh...
Europe:Germany,France,Austria,Slovakia,Sweden,Norway,Netherlands, Finland,Serbia. Australia: Australia, New Zealand,Fiji
America: United States,Canada,Colombia,Brazil,Chile...
Africa: Ghana,Kenya,Nigeria,Mauritius,Congo...Till now, we have supplied solar products to 100+ companies from all over the world. We build the good relationship with our
clients&provide best quality modules.
Packaging & Shipping
Certifications
Company Profile
Product Warranty
25 - year limited warranty of 80% power output;
10 - year limited warranty of 90% power output;
5 - year limited warranty of materials and workmanship
STC: lrradiance 1000 W/m2, module temperature 25 °C, AM=1.5;
Best in Class AAA solar simulator (IEC 60904-9) used, power measurement uncertainty is within +/- 3%
Material
Ø Solar cell------conversion efficency of solar cells: 24%-17%, and ensures high performance and more power under same condition
Ø Front glass------3.2mm, high transmission, low iron, tempered glass,to enhanced stiffness and impact
resistance
Ø EVA------excellent anti-aging EVA , to enhance the rigidity and stability of solar cells
Ø TPT-------TPT hot seal made of flame resistance.
Ø Flame------is equipped with drainage holes in order to eliminate the risk that rain or snow water may accumulate in the frame
Ø Junction box------Ip65 rated, high quality, with diode protection
Ø Bypass diodes ------to avoid hot-spot effect.
FAQ
Q : How can we guarantee quality?
A : Always a pre-production sample before mass production;
Always final Inspection before shipment.
Q : Why should you buy from us not from other suppliers?
A : Intenergy is a global Solar energy provider with a presence in more than130 countries around the world.More than 1.5GW of
Intenergy modules have been used in residential, commercial and off-grid systems around the world.
Q : what services can we provide? A : Accepted Delivery Terms : FOB ,CFR ,CIF ,EXW.
Accepted Payment Currency : USD ,EUR ,CNY.
Accepted Payment Type : T/T ,L/C ,Credit Card.

---
