Industrial Cyclone Separator Centrifugal Vertical Powder Air Classifier for Fly Ash/Chemical/Calcium Carbonate/Limestone/Kaolin

Product Description

Industrial Cyclone Separator Centrifugal Vertical Powder Air Classifier for Fly Ash/Chemical/Calcium Carbonate/Limestone/Kaolin
Features and Advantages

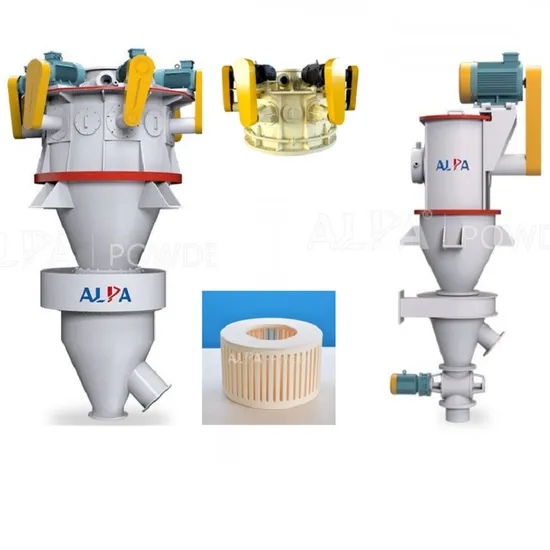

FW/HTS Horizontal Air Classifier

Available D50:1.5-25μm

The linear velocity of horizontally installed classifying wheels is up to 80m/s

Classifying efficiency (extraction ratio) can be 60%~90%

Speed of wheel is equipped with velocity sensor and can be controlled by inverter, particle size can be adjusted freely

System negative pressure operation, meet environmental requirements, noise <76dB(A)

The classifying wheel can be made of ceramic materials such as alumina, zirconia and silicon carbide, without metal pollution, meeting the requirements of high-purity materials

PLC control system, easy operation

FL/ITC Vertical Air Classifier

Available D50:2-45μm

Suitable for precise classifying of dry micron material

Classifying efficiency (extraction ratio) can be 60%~90%

System equipped with muffler operating under negative pressure, meet environmental requirements,noise <76dB(A)

PLC control system, easy operation

Optional explosion-proof design, can also be upgraded to a nitrogen circulation system to meet the processing needs of flammable and explosive oxide materials

Technical Parameters

Multiple Rotor
Parameters/specifications	FW400/3	FW400/4	FW630/3	FW630/4	FW630/6	FW800/4	FW800/6	FW1000/4	FW1000/6
Production Capacity(T/h)	0.2~1.5	0.3~2	1~5	2~8	3~10	3~10	5~15	5~20	8~30
Product Size(d97:um)	3~45	3~45	3~45	3~45	3~45	5~45	5~45	5~45	5~45
Classifying efficiency(%)	60~80	60~80	60~80	60~80	60~80	60~80	60~80	60~80	60~80
Installed Power(kw)	60~90	175~100	135~155	170~190	250~290	220~290	290~390	340~440	500~580

Single Rotor
Parameters/specifications	FW200	FW280	FW400	FW520	FW630	FW800
Production Capacity(kg/h)	10~100	20~200	50~500	100~1500	200~2500	400~4000
Product Size(d97:um)	3~45	3~45	3~45	3~45	3~45	5~45
Classifying efficiency(%)	60~80	60~80	60~80	60~80	60~80	60~80
Installed Power (kw)	7~11	15~19	21~28	23~30	52~60	67~77

Parameters/ specifications	FL300	FL360	FL450	FL550	ITC-4	ITC-5	ITC-6
Production Capacity(kg/h)	20~1000	300~2000	1000~3000	3000~5000	8000~15000	15000~20000	20000~30000
Product Size(d97:um)	6~150	5~150	5~150	8~150	10~150	15~150	20~150
Classifying efficiency(%)	60~90	60~90	60~90	60~90	60~90	60~90	60~90
Installed Power(kw)	11.5~42.5	18~60	63.5~105	77~120	120~160	90~200	170~310

Working Principle
The classifier and cyclone separator, dust collector and induced draft fan form a classifying system.
Under the action of fan suction, the material is moved from the lower inlet of the classifier to the classifying zone with the ascending airflow.
Under the strong centrifugal force generated by the high-speed rotating turbine, the materials are separated and the fine particles which meet size requirements through the classifier impeller gap into the cyclone separator or the dust collector,
the coarse particles entrained part of the fine particles collided with the wall and the velocity disappeared, descending along the cylinder wall to the secondary air outlet, and the coarse and fine particles were separated by the strong washing action of the secondary air.
The fine particles rise to the classification zone for secondary classifying, and the coarse particles are lowered to the discharge port for discharging.
Shandong ALPA Powder Technology Co., Ltd.(abbreviation: ALPA / Equity Code: 171033)THE WORLD'S LEADING SUPPLIER OFULTRA-FINE POWDER SOLUTIONSALPA was founded in 1999.Focus on ultra-fine ultra-pure crushing and classifying research, powder shape control, powder surface modification, and system integration of powder engineering equipment.
In the fields of ultrafine grinding and classification in the pharmaceutical, food, chemical, mineral, new materials, solid waste treatment and other industries, ALPA has mature and fully customized solutions and helps you design the ideal system to meet your needs.
Who Choose ALPABy 2018, 37 world top 500 companies, 89 Chinese top 500 companies, 169 national key laboratories and engineering technology research centers have selected ALPA.More than 3,000 customers have chosen us
Q: What service do you supply?A: 1). We offer consultancy for project feasibility assessment, process flow definition, preliminary layout and factory building plan, project budget, project time schedule, etc.
2). We supply sample processing tests in our test station where are equipped with our various machine products, to help clients compare performances of different types of machines or process.
3). We supply project engineering, automation engineering and civil engineering.
4). We send engineers to the clients' project site and offer on-site technical instruction and supervision during the machine installation, commissioning and test run.
Q:How can I trust on your quality?
A: 1). All of the machine be tested successfully in Weifang workshop before shipment.
2). We supply one year warranty for all equipment and lifelong after-sales service.
3). We can test your material in our equipment before place the order, to ensure our equipment is suitable for your project.
4). Our engineers will go to your factory to install and debug the equipment, they will not be back until these equipment can produce qualified products.
Q:Does your company provide Engineers Abroad Service?
A: Sure, we provide it. And we can provide free training for on-site workers.
Q:How to train our staff about operation and maintenance?
A: We will provide detailed technical instructive pictures to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.

---
