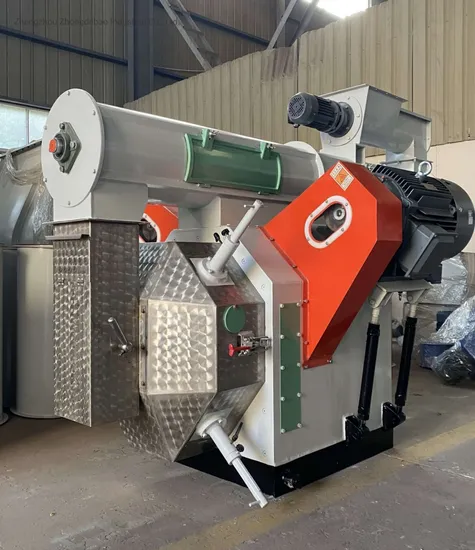

3-5t /H Horizontal Ring Die Poultry Livestock Chicken Feed Pellet Machine

Product Description

Product Description
Horizontal Ring Die Animal Poultry Feed line :
Different model for Choose

Name: Ring die feed pellet mill Model: HKJ-250 with single conditioner Capacity: 1-1.5 t/h Die's Diameter: 250mm Die's rotation rate: 388 r/min Pellet Diameter: 2.0mm-6.0mm Roller NO.: 2 Roller outer diameter: 108 mm Main power: 22 kw,380v,50hz Conditioner power: 1.5 kw Feeding power: 0.75 kw Gross Weight: 850 kg Dimension: 1762*616*1840 mm

Name: Ring die feed pellet mill Model: HKJ-320 with single conditioner Capacity: 2-4 t/h Die's Diameter: 320mm Die's rotation rate: 305 r/min Pellet Diameter: 2.0mm-6.0mm Roller NO.: 2 Roller outer diameter: 140 mm Main power: 22 kw*2, 380v,50hz Conditioner power: 2.2 kw Feeding power: 0.75 kw Gross Weight: 1500 kg Dimension: 2200*1500*1770 mm

Name: Ring die feed pellet mill Model: HKJ-358 with single conditioner Capacity: 3-5 t/h Die's Diameter: 358mm Die's rotation rate: 305 r/min Pellet Diameter: 2.0mm-6.0mm Roller NO.: 2 Roller outer diameter: 160 mm Main power: 30kw*2, 380v,50hz Conditioner power: 2.2 kw Feeding power: 0.75 kw Gross Weight: 1500 kg Dimension: 2400*1500*1770 mm

Name: Ring die feed pellet mill Model: HKJ-432 with single conditioner Capacity: 5-10 t/h Die's diameter:432 mm Die's rotation rate: 300rpm Power: 55kw*2, 380v,50hz Conditioner power: 4 kw Feeding power: 1.5 kw Roller outside diameter: 200 mm Roller Qty.: 2 Gross weight: 3900 kg Size: 2840*2150*2210 mm

Name: Ring die feed pellet mill Model: HKJ-508 with single conditioner Capacity: 5-13 t/h Die's diameter:508 mm Die's rotation rate: 300rpm Main Power: 75kw*2/380v, 50hz Conditioner power: 5.5kw Feeding power: 1.5 kw Roller Qty.: 2 Gross weight: 4300kg Size: 3400*2150*2210 mm

5ton/h feed line to Turkey
8 ton/h ring die feed line to India

1-3 Ton/h Flat die feed line :
Our projects
1000kg/h feed pellet line to Côte d'Ivoire
1000kg/h feed pellet line to Peru
1000kg/h feed pellet line to Indonesia
2000kg/h feed pellet line to Russian
2000kg feed pellet line to Chile
Raw materil & Products

Our factory
Certifications

Our good feedback :
Packaging & Shipping

FAQ

Q. What is your payment term? A: T/T 30% down payment, balance to be paid before shipment. Q: What is your main market? A: South America, Eastern Europe, Southeast Asia, Africa, Oceania, Eastern Asia Q: What is your producing time? A: Producing time depends on that machines you ordered. Usually takes 45 days. Q: What documents you can offer? A: We can offer invoice, packing list, contract, instructions, customs declaration, certificate of origin, CE. If client need other documents, specifications, please confirm with service staff. Q: If equipments have some quality problem, how would you deal with? A: We will responsible for all the quality problems. We will check the machine to get the problem. If need parts, will send them to you. Q: How to install the equipments? A: We send 1-2 engineer (150USD/person/day) to the local plant for helping install and commissioning equipments. To save time, our service stuff will tell you what to prepare in advance. We can also teach the workers to how to use the machines and how to make the products better.

---
