Paper Tea Glass Making Machine Price

Product Description

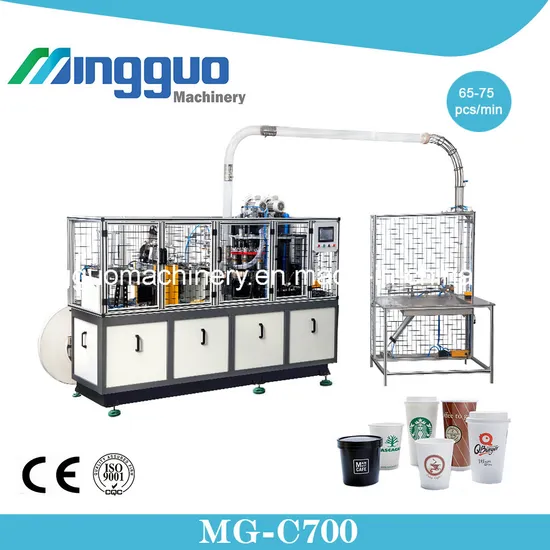

MG-C700 PAPER CUP MACHINE
TECHNICAL SPECIFICATION

Model	MG-C700
Paper cups specification	4-16oz (100-450ml)(mold exchangeable) T:55-85mm H:60-135mm B:55-70mm
Air supply requirement	0.5-0.8MPa,0.4cbm/min
Paper specification	150-350 GSM single/double PE coated paper
Production capacity	60-80 pcs/min
Voltage	220V/380V
Total Power	7KW
Total Weight	3000KG
Dimensions	2800mm*1300mm*1850mm
Note	Customized service is available

MAIN PARTS BRAND

Item	Brand	Original
Main Motor+Gear reducer	Tianhong
Knurling motor +Gear reducer	Taibang	Taiwan
Bottom motor +Gear reducer	Taibang	Taiwan
Bottom stepping motor	Taibang	Taiwan
Lubrication Motor	Limada	Shanghai
Touch screen	Weichuang	Guangzhou
Relay	Schneider	Germany
Exchange parts	Schneider	Germany
Sensor	Moron	Germany
Driver	Weichuang	Guangzhou
Ultrasonic	EVER GREEN	Taiwan
PLC	Mitsubishi	Japan
Hot heating	Leister	Switzerland

MACHINE INTRODUCTION
MG-C700, a newly developed paper cup machine, achieves a manufacturing speed of 65-75pcs/min. This piece of paper converting equipment provides a multi-station design and is able to make single and double PE coated beverage cups, ice cream cups, coffee cups, bubble tea cups and more. In addition to that, this integrated automatic paper container forming machine combines all these processing procedures together: paper feeding, sealing, bottom cutting, lubricating, heating, knurling, curling and collecting.

FEATURE
A. The machine adopts open cam type structure, high precision, large out-put and long life.

B. Longitudinal gear drive. This make up the chain drive jitter and instability's weakness.

C. Whole machine is box type structures design, filling oil by spray lubrication system So that it can run fast and stably.

D. Photoelectric failure-detecting system is available. PLC control system for the whole cup forming process.

E. Servo control to send bottom paper of cup, deliver bottom when cup tube come, otherwise no bottom delivery.

F. Stretch knife uses for bottom cutting. Easy changed and more stable.

G. Switzerland Leister heating device is equipped for cup body and bottom sealing, bottom are heated at first before they are feeding, thus improving heating effect and helping guarantee knurling.

H. The knurling device adopts hardening treatment,make up the cup knurling more beautiful and increase it use life.
Factory
CERTIFICATE
SAMPLES

---
