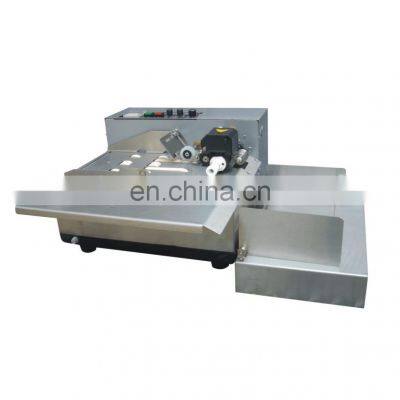

HUALIAN Printing Machine(MY-380F/W)
Product Description
Description:.
MY-380F solid-ink coding machine fit for printing label on paper, thin cardboard, plastic film and aluminum foil. Adopt solid-ink coding, characterized by high definition, instant printing & instant dry, various colors selectable and strong adhesion.
Features:
1. Adopt photoelectric mechanism technology, automatic temperature control, auto counting, adjustable print position.
2. The printing roller equipped to the machine can be used for both R arrange and T arrange of types. For types in T arrange, the machine can print 1-10 lines with 1-10 characters in each line. For types in R arrange, the machine can print 1-8 lines with 1-8 characters in each line. Types in sizes of 2mm, 2.5mm, 3mm are available as option.
3. Work efficiently and automatically at high speed, up to 30pcs per minute.
Parameters:
| MY-380F
| MY-380F/W
|
Voltage(V/Hz)
| AC 220/50 110/60
|
Power(W)
| 180
|
Solid Ink Roller(mm)
| 35×32 35×16
|
Printing Speed(pcs(/min)
| ≤300
|
Object Size(mm)
| L:50-500 W:30-190
| L:50-550 W:30-300
|
Max. Printing Line
| T Arrange(10.5PT):11Lines (Max.10 characters/line)
R Arrange(10.5PT):8Lines(Max.8 characters/line)
|
Printing Size(mm)
| Within 60-250
|
Type Size(mm)
| 2×1.5( 8PT ) 2.5×2(9PT) 3×3(10.5PT) 4×2.5(18PT)
|
External Dimensions
(L×W×H)(mm)
| 440×345×300
| 440×465×300
|
Net Weight(Kg)
| 23
| 26
|
Related Products
Company Profile
Main Product
Our Market
Why choose us:
Zhejiang Top Export Brand
China packaging industry enterprises TOP100
China packaging machinery industry enterprises TOP30
Quality Control:
1.Each Heat Sealer Impulse Sealer with the Eligible Certification inside package
2.Shipping department checks each item before packing, totally avoiding manufacturing defects.
3.The main products have attained European CE certificat
Research And Development:
1.Obtained the national patent 39 items, invention patent 2 items!
2.Drafting up national standard and industry standard for "Plastic Bag Heating Sealer","Semiautomatic Strapping Machine" and "Skin Packaging Machine".
Marketing:
1.Hualian have more than 200 agent network all over the world
2.The products are sold to more than 100 countries around the world.
FAQ
Q: Are you a factory or a trading company?
A: We are a factory manufacturing packaging&printing machines and we provide perfect OEM and after-sale service. We export machines to over 108 countries since 1995.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have video of every standard machine and can send to you by Email or other way you want.
Q: How can I pay my order?
A: We accept T/T, Western Union, Alibaba Online Payment to pay.
Q: Do you have any certificate?
A:We have passed ISO9001:2008,ISO14001,OHSAS18001 and obtained CE certificate and BSCI certificate from UL.
Q: Why the model name of your machine same as the machine form other company?
A: Since these machines have long history and are very popular in the market, it may be indeed possible that some machine models are similar as others. What we may think is that the machine model does not make big difference. And the criteria for machines may depend on the technical support and quality of the machines.
Q: When your company was founded?
A: Hualian Machinery Group Co., Ltd. was established in 1989.
Q:How about your warranty?
A: Our warranty is 12 months. Normally, the general after-sale service may be as below:
1) The technical support is permanent.
2) The paid spares parts could be provided at any time.
3) We have dealers in some countries to offer compensable service.
Q: Why your price is higher than many suppliers in China?
A: Hualian is old and famous brand of packing machines and we offer machines in high quality and consummate service from inquiry to after-sale.
>>
