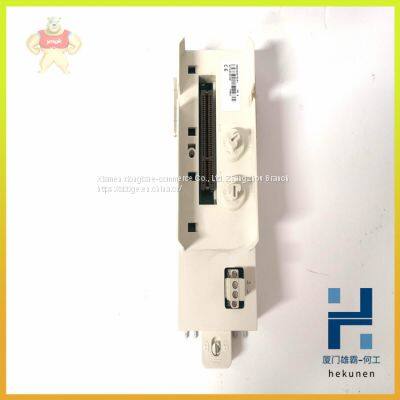

TP854 3BSE025349R1 ABB Analog output module ci854 base

Product Details

Product Description

Product Description
TP854 3BSE025349R1 ABB Analog output module ci854 base
TP854 3BSE025349R1 ABB Analog output module ci854 base
Our Email: 2235954483@qq.com
contact number:13313705507
contacts：HE
The permissible twisted-pair cables are specified in IEEE 802.3i-1990. At 2.5
MBit/s and with coaxial cables, for example, the maximum length of a bus segment is 300 m with eight subscribers and without a hub. With twisted-pair cables,
under the same conditions, a maximum length of approximately 120 m can be
achieved. The maximum transmis -sion length depends on the number of connected subscribers. With coaxial cables, a maximum of 16 km can be achieved;
with twisted-pair cables approximately 6 km, in each case at 2.5 MBit/s. The
fiber-optic link provides the highest degree of interference immunity. With glass
fiber-optics, distances of up to 3 km are possible at 2.5 MBit/s; with plastic fiberoptic cables only small distances of up to approximately 100 m. The baud rate
plays no significant role in fiber-optic cable transmission. Here, the range can as
well be extended using hubs.
Diagnostics
Detailed diagnostic messages for rapid trouble-shooting are shown on the CPU
display.
ARCNET – the functionality at a glance
• Guaranteed collision-free data transmission, guaranteed response times and
real-time capability thanks to token-passing
• Large network dimensions: network length 300 m, with amplifier max. 16 km
• Secure, thanks to checksums in the data packet and hand shake protocol
between transmitter and receiver
• Variable network structure: bus, tree and star topologies are possible, plus any
desired mixtures of them
• Variable networking media, coaxial cables, twisted-pair cables and fiber-optic
cables can be mixed
• Automatic subscriber log-on and log-off; the network automatically incorporates new stations in the ring and cancels them as well
• Master-master access: the subscriber that holds the token is the master. With
up to 255 masters at the same network
• Data transmission rate of max. 2.5 MBit/s
• ARCNET is configured and programmed using the AC500 Control Builder
engineering tool

---
