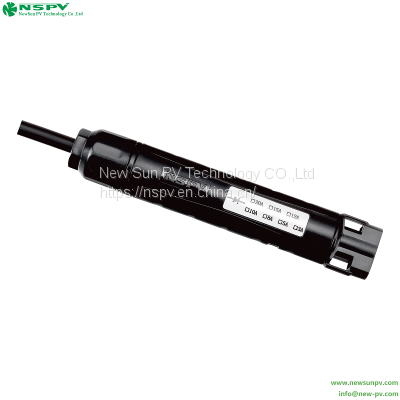

PV MC4 Solar Diode Connector Heat Resistant Solar Blocking Diode Connector for Solar Panel

Product Details

Product Description

Product Description
PV 4-type Solar Diode Connector Heat Resistant Solar Blocking Diode Connector for Solar Panel :
Diode connectors plays a crucial role in maintaining the efficiency and safety of photovoltaic systems, helping to prevent reverse currents that can damage system components and reduce overall performance.

Materials
Insulation	PPE
Color	Black
Contact material	Copper
Electrical Data
Rated current	6A-12A
Rated voltage	1000V DC
Contact resistance	≤0.5mΩ
Wire size range	2.5~6mmsq(10AWG~14AWG)
Environmental
Degree of protection	IP67
Standards	TUV
Ambient temperature range	-40°C until +85°C
Material RTI	110°C
Flame class	UL94-V0
Safety class	2
Pin dimensions	4mm

---
